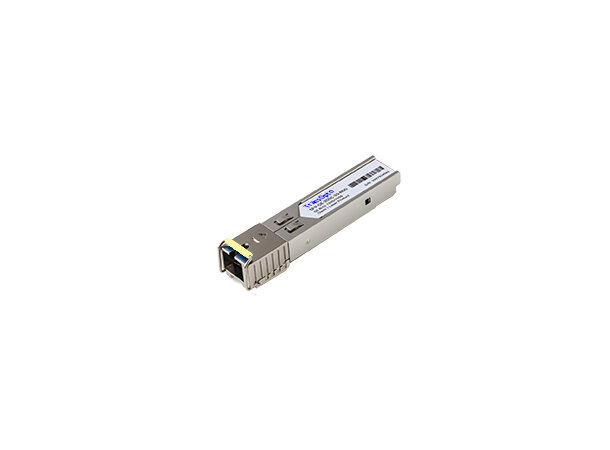

SFP BIDI, 1GE, DDM, SM, 20km TX/RX=1550/1310nm, 14dB, SC

SFP BIDI, 1GE, DDM, SM, 20km

TX/RX=1550/1310nm, 14dB, SC

Artikelnummer: SFP-GE-BX20SC-53
Visa alla varianter
BeskrivningTeknisk infoDokumentationTillbehörAlternativAndra köpte också
Beskrivning
Key Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1550nm FP laser and PIN photodetector for 20km transmission
Compliant with SFP MSA and SFF-8472 with simplex SC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
TX Power: -9.0~0dBm
Receiver Sensitivity: <-23.0dBm
Powerbudget: 14dB


Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Other optical transmission systems
Teknisk info

Produktinformation

Avstånd 10-20 km
DDM Ja
Formfaktor SFP BiDi
Kontakttyp SC Simplex
Mediatyp BiDi Singelmod
