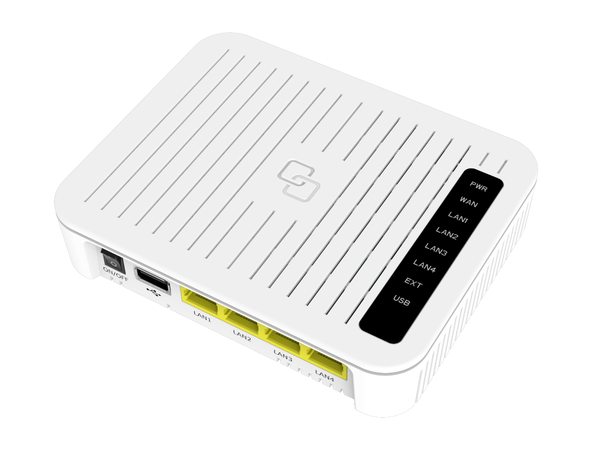

The XG6846B is a high performance 1G capable Ethernet Layer2/Layer 3 device. It consists of one 1G Ethernet FTTH SFP WAN port, one 1G RJ45 based WAN and four 1G LAN ports. The internal components is of the latest generation, supporting line rate performance up to layer 4 thanks to an advanced quad-core application and networks processor.
Key features
• 1x 1G SFP WAN port
• 1x 1G WAN/EXT port
• 4x 1G LAN ports
• 1x USB 2.0 (optional)
• Supports IGMP snooping
• Compatible with existing XG6846 Fiber Trays
• Cloudsight management and provisioning
• Software can be upgraded remotely
• Optional CATV module (remotely managed)
• Supports port-based or IEEE 802.1Q tagged VLAN to provide virtual channels to separate various types of service
• VLAN classification and retagging (VLAN mapping)
• Sophisticated packet classifying and priority queuing mechanisms ensure Quality of Service (QoS)
• Using GenXOS modular software to enable for 3rd party development.
• Line rate performance in L2/L3 mode for all packets sizes
