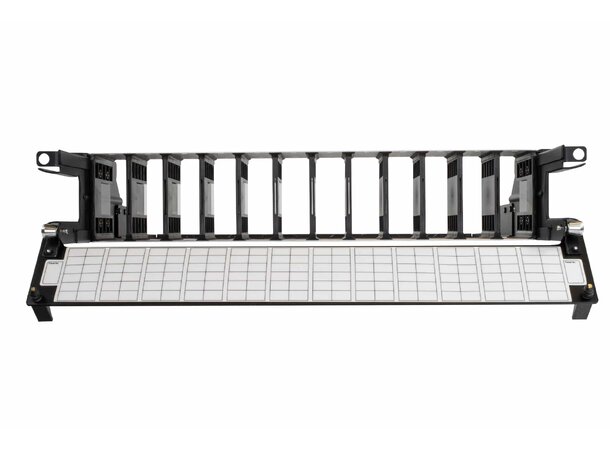

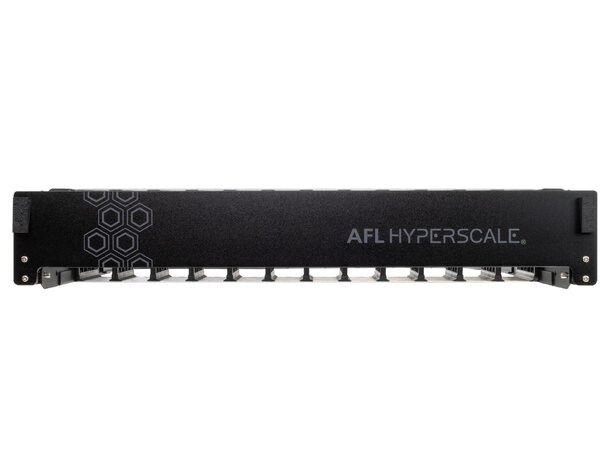

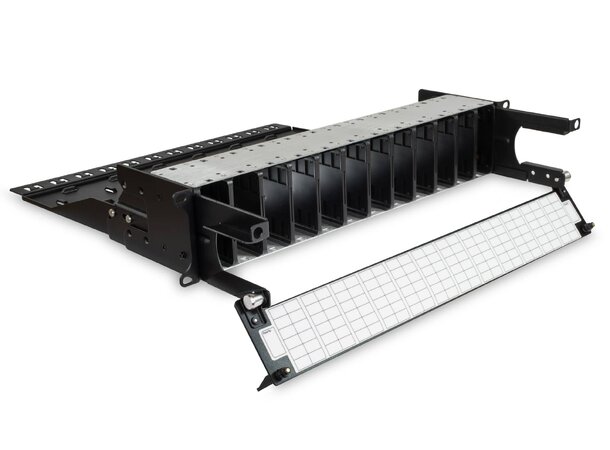

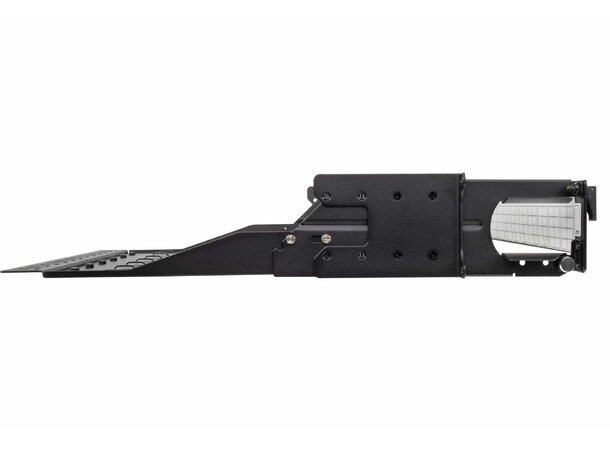

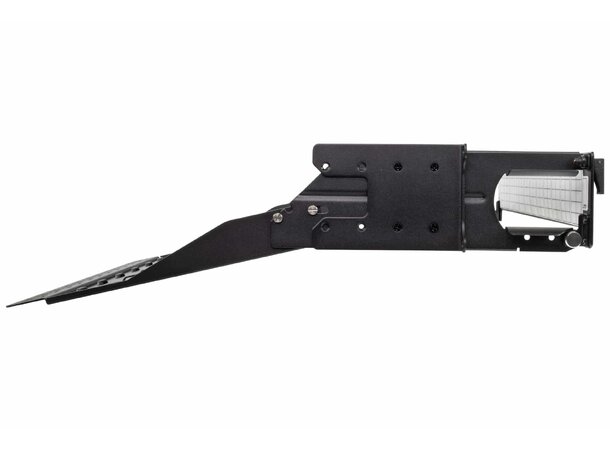

The U-Series 2RU Housing can house up to 12 U-Series cassettes with the capacity to scale up to 288 LC ports and 2304 fibers using an MPO interface.
Compact to facilitate installation in shallow-depth racks, it allows for front and rear cassette installation and is compatible with U-Series MPO, pre-terminated, and splice cassettes.

Height: 88mm
Width: 484mm
Depth: (full configuration with door) 139mm

Maximum fiber count: 144f (LC/SC), 288f (LC), 3456f (MPO)
Maximum number of U-Series adapter plates 12
Cable entry Left and right

Operating temperature -20°C to +50°C

Designed in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754,
Materials compliant to RoHS, Reach / SVHC

Weight: (without packaging) 1.97 kg
Weight: (with packaging) 2.31 kg
