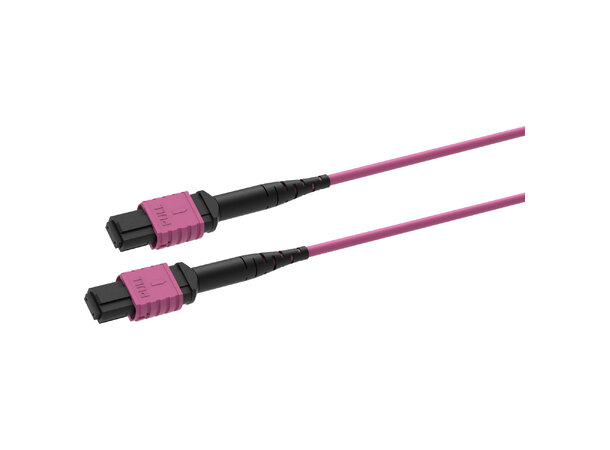

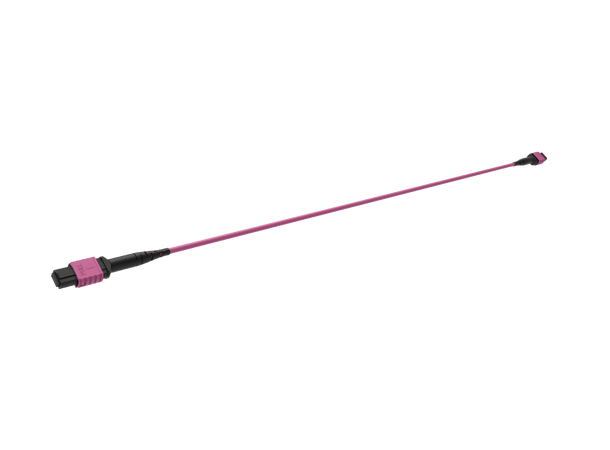

ECS MPO Trunk OM4 12F Cca 1xMPO12 Elite Base12 hona-hona Pol A E.V

ECS MPO Trunk OM4 12F Cca 1xMPO12

Elite Base12 hona-hona Pol A E.V

Artikelnummer: MT-12O4B12FFA
Visa alla varianter
PDF Datablad
BeskrivningDokumentation
Beskrivning
MPO Elite Trunk MM OM4 Fiber Grade 12 Core Microcable LSZH
Factory Terminated and Tested with Attached test certificate
Labeled with Individual S/N
MPO push/pull release boot
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

Female to Female MPO Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Polarity A

Cable Characteristics Units Value

Outer Diameter mm 3.0
Tensile Strength Max N 200
Crush N/100mm 500
Strength Member Aramid Yarn
Operating Temperature °C -20 ~ +70
Minimum Bending Radius mm 10D (installed)/20D (loaded)
Dokumentation
Tillverkare
PDF Datablad
ECS MPO Trunk OM4 12F Cca 1xMPO12 10,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 10,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-010
ECS MPO Trunk OM4 12F Cca 1xMPO12 15,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 15,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-015
ECS MPO Trunk OM4 12F Cca 1xMPO12 20,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 20,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-020
ECS MPO Trunk OM4 12F Cca 1xMPO12 25,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 25,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-025
ECS MPO Trunk OM4 12F Cca 1xMPO12 30,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 30,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-030
ECS MPO Trunk OM4 12F Cca 1xMPO12 35,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 35,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-035
ECS MPO Trunk OM4 12F Cca 1xMPO12 40,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 40,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-040
ECS MPO Trunk OM4 12F Cca 1xMPO12 45,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 45,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-045
ECS MPO Trunk OM4 12F Cca 1xMPO12 5,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 5,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-005
ECS MPO Trunk OM4 12F Cca 1xMPO12 50,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 50,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-050
ECS MPO Trunk OM4 12F Cca 1xMPO12 55,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 55,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-055
ECS MPO Trunk OM4 12F Cca 1xMPO12 60,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 60,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-060
ECS MPO Trunk OM4 12F Cca 1xMPO12 65,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 65,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-065
ECS MPO Trunk OM4 12F Cca 1xMPO12 70,0m Elite Base12 hona-hona Pol A E.V
ECS MPO Trunk OM4 12F Cca 1xMPO12 70,0mElite Base12 hona-hona Pol A E.VArt. nr:MT-12O4B12FFA-070
