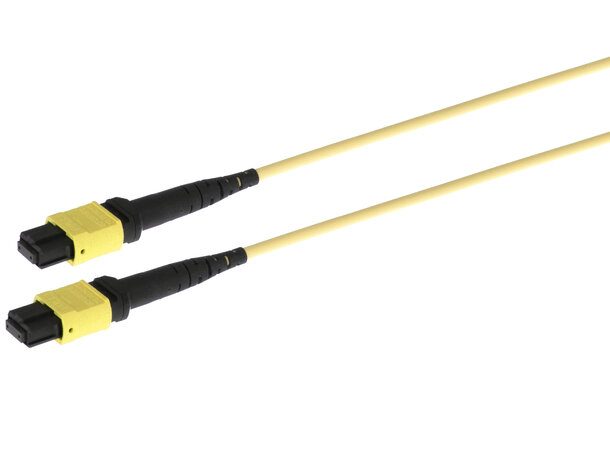

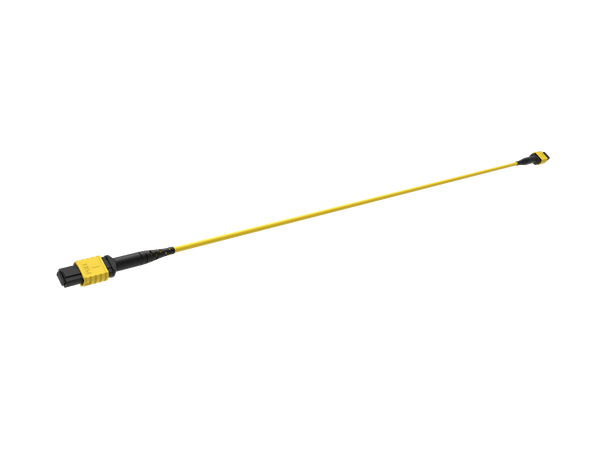

ECS MPO Trunk SM 12F Cca 1xMPO12 Elite Base12 hona-hona Pol A G657A2

ECS MPO Trunk SM 12F Cca 1xMPO12

Elite Base12 hona-hona Pol A G657A2

Artikelnummer: MT-12A2B12FFA
Visa alla varianter
PDF Datablad
BeskrivningDokumentationAndra köpte också
Beskrivning
MPO Elite Trunk SM G657A2 Fiber Grade 12 Core Microcable LSZH
Factory Terminated and Tested with Attached test certificate
Labeled with Individual S/N
MPO push/pull release boot
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

Female to Female MPO Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Polarity A

Cable Characteristics Units Value

Outer Diameter mm 3.0
Tensile Strength N 200
Crush N/100mm 500
Strength Member Aramid Yarn
Operating Temperature °C -20 ~ +70
Minimum Bending Radius mm 10D (installed)/20D (loaded)
Dokumentation
Tillverkare
PDF Datablad
