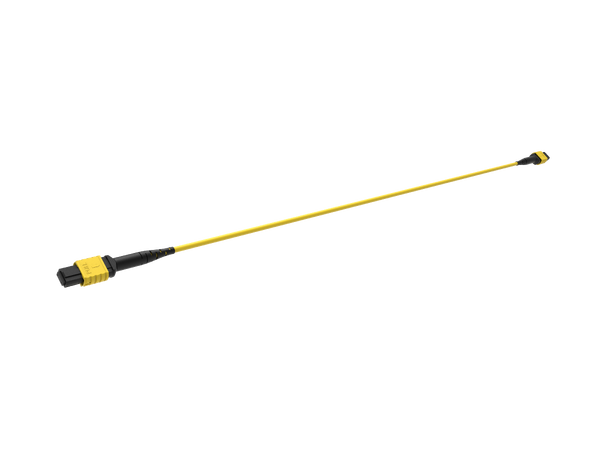

MPO Elite Trunk SM G657A2 Fiber Grade 24 Core Microcable LSZH
Factory Terminated and Tested with Attached test certificate
Labeled with Individual S/N
MPO push/pull release boot
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

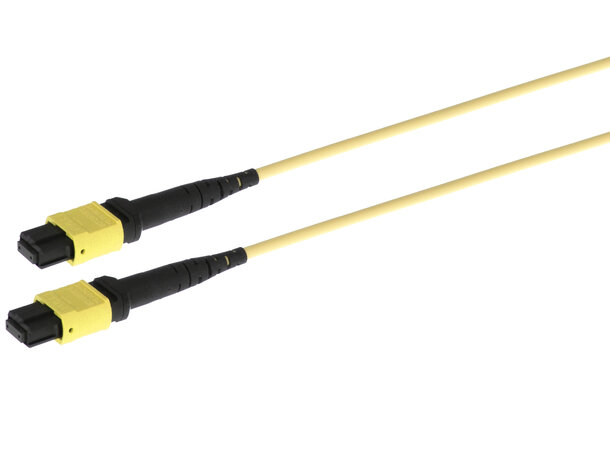

Female to Female MPO Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Polarity A
Cable Characteristics Units Value
Outer Diameter mm 4,5
Tensile Strength N 400
Crush N/100mm 1000
Strength Member Aramid Yarn
Operating Temperature °C -20 ~ +70
Minimum Bending Radius mm 10D (installed)/20D (loaded)
