Du är här Alcadon AB   >   Produkter   >   Transceiver   >   SFP 1G / 100Mb   >   Gigabit Ethernet   >   SFP, 1 GbE, DDM, 20km

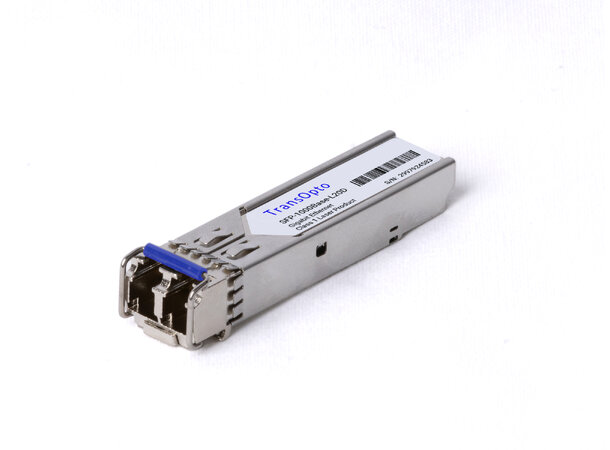

SFP, 1 GbE, DDM, 20km 1310nm, 14dB,SM/MM

SFP, 1 GbE, DDM, 20km

1310nm, 14dB,SM/MM

Artikelnummer: SFP-1G-L20D
Visa alla varianter
BeskrivningTeknisk infoDokumentationTillbehörAlternativAndra köpte också
Beskrivning
Key Features
Dual data-rate of 1.25Gbps/1.063Gbps operation
1310nm FP laser and PIN photo detector for 20km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring:Internal Calibration or External Calibration
Compatible with SONET OC-24-LR-1
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
TX Power: -8~-3 dBm
Receiver Sensitivity: <-22dBm

Application
Gigabit Ethernet
Fiber Channel
Switch to Switch interface
Switched backplane applications
Router/Server interface
Teknisk info

Produktinformation

Avstånd 10-20 km
DDM Ja
Formfaktor SFP
Kontakt LC Duplex
Mediatyp Singelmod
