Key Features
• IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard

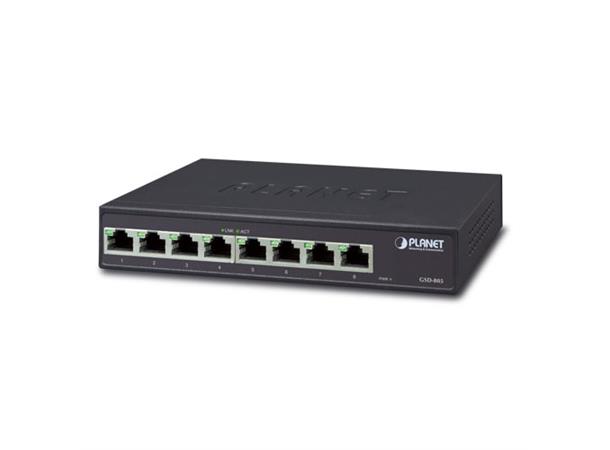

• 8-Port 10/100/1000Mbps Gigabit Ethernet ports
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
• IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
• Integrated address look-up engine, support 4K absolute MAC addresses
• 1Mbit on-chip frame buffer
• 9K Jumbo packet support
• Automatic address learning and address aging
• Supports Auto MDI / MDI-X function
• Supports CSMA / CD protocol

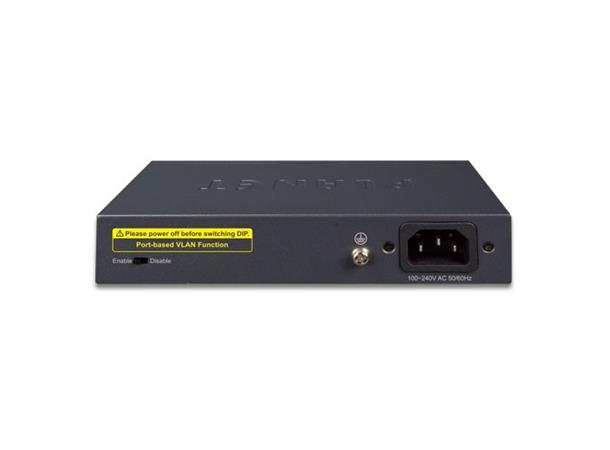

• Internal power adapter 100-240V AC, 50/60Hz, 0.2A
• FCC, CE class A compliant
