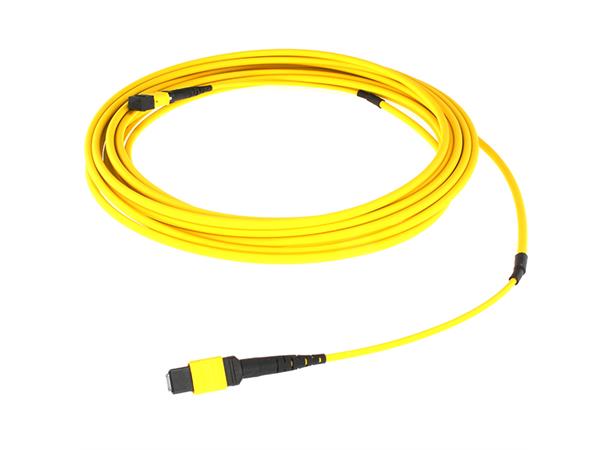

ECS MPO Trunk 12x10/125 OS2 7,5m MPO Elite hona-hona rak Pol A

ECS MPO Trunk 12x10/125 OS2 7,5m

MPO Elite hona-hona rak Pol A

Artikelnummer: MPOT-12OS2-07.5/FR
PDF Datablad
BeskrivningDokumentationAndra köpte också
Beskrivning
Features
OS2 Fiber Grade
12 Core Microcable Trunk
LSZH, OFNP Optical Fiber Nonconductive Plenum Cable Jacket
Female MTP Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Polarity A
Factory Terminated and Tested

Applications
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
Infiniband
Emerging 40 and 100Gbps Protocols

Standards Compliance
TIA/EIA-568-C.3 and ISO/IEC 11801
IEC-61754-7 & EIA/TIA-604-5
NFPA 262 (OFNP) or IEC 60332 (LSZH)
TIA/EIA 568-B.1-7
Compliant to Directive 2002/95/
EC (RoHS) and REACH SvHC

MTP trunk assemblies are offered in fiber types in standard 12, 24 or 48 core versions using a compact and rugged microcable structure. The compact cables optimize cableway use and improve airflow.
