Ersätter MTPP-PAN-01

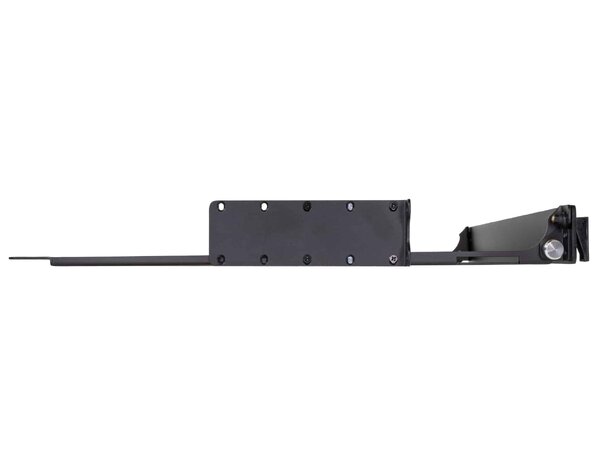

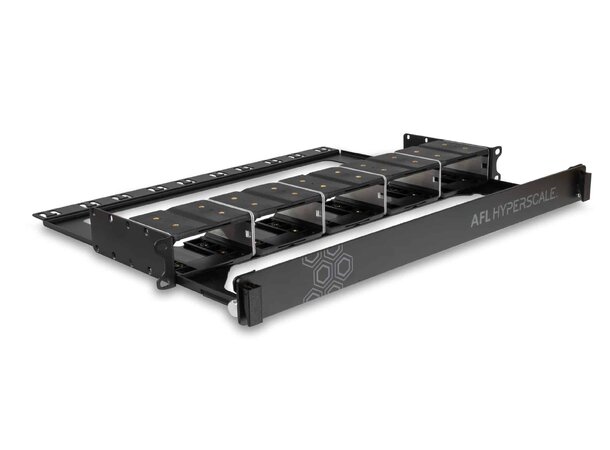

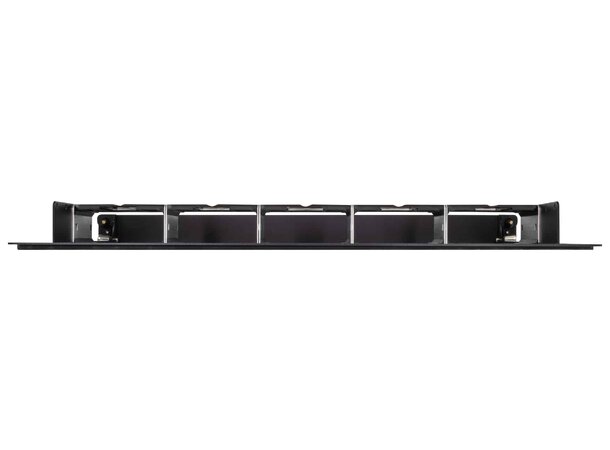

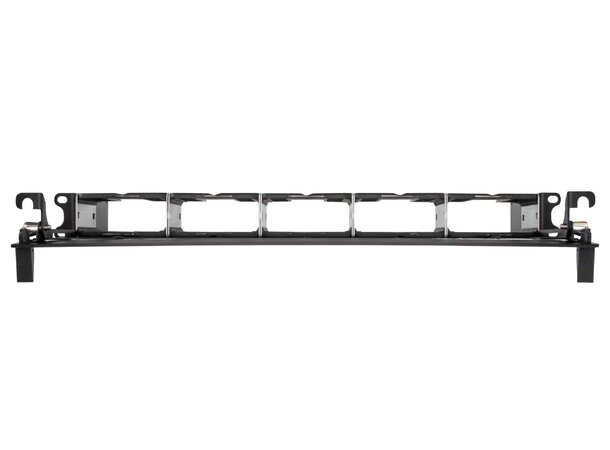

AFL 1U MTP Ultra High Density Chassis is the part of the system for high density fibre optics infrastructure management in Data Centers, Telecommunication and Enterprise network environment. 1U chassis can house up to 5 x UHD Modules- design allows to scale up to 120x LC ports and 960 fibres using MPO/ MTP Interface.
- Ultra High Density
- Up to 120 LC ports in 1U
- Up to 960 fibres using MPO/MTP Interface
- Compact size for installation inside shallow depth racks
- Open chassis free access module installation
- Secure easy access lock/release mechanism
- Front and rear module access
- Facilitated patch cord installation
Height: 44.4 1U
Width: 479mm
Depth: (Base including brackets) 226mm
Maximum Number of UHD Modules: 5
Operating Temperature: -40°C to +60°C
Designed in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant to RoHS, Reach/SVHC
