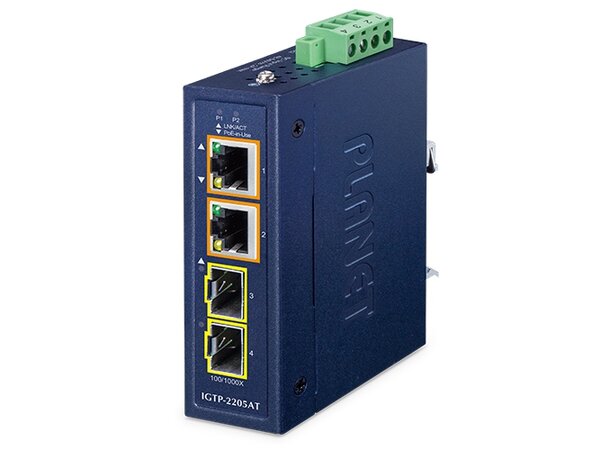

Physical Port
- 2-port 10/100/1000BASE-T RJ45 with IEEE 802.3at PoE+ injector function
- Two SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
Power over Ethernet
- Complies with IEEE 802.3at PoE Plus end-span PSE.
- 2 IEEE 802.3at/af device powered
- Supports PoE Power up to 30 watts for PoE port.
- Provides DC 48~54V power over RJ45 Ethernet cable to PD with Ethernet port.
- Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation.
- Remote power feeding up to 100m
- IEEE 802.3at/af PoE splitter devices compatible
Layer 2 Features
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port.
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex).
- PROFINET Traffic Pass-through with QoS
Industrial Case and Installation
- IP30 metal case
- DIN-rail and wall-mount designs

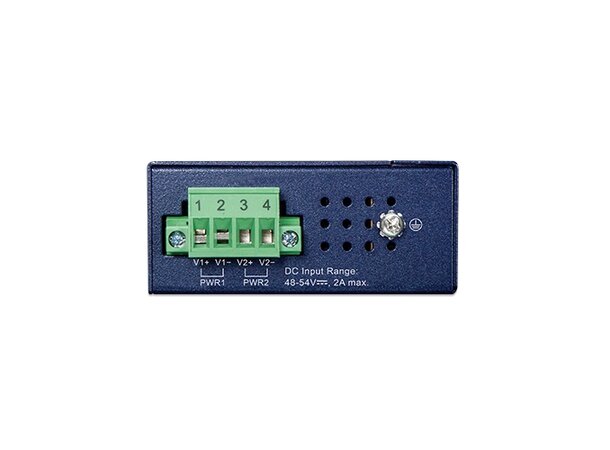

- 48V~54V DC power with reverse polarity protection
- Connective removable terminal block
- Supports 6000 VDC Ethernet ESD protection.
- -40 to 75 degrees C operating temperature
- Free fall, shock-proof and vibration-proof for industries
