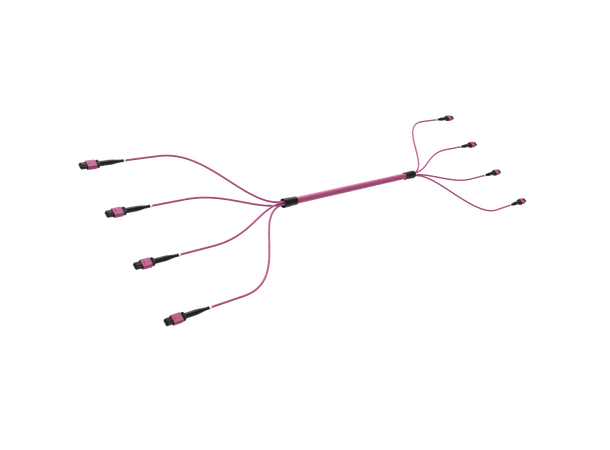

MPO Elite Trunk MM OM4 Fiber Grade 48 Core Microcable LSZH Erika Violet
Factory Terminated and Tested with Attached test certificate
Labeled with Individual S/N
MPO push/pull release boot
CPR Reaction to Fire Classification Certified Cca-s1b,d0,a1

Female-Female MPO Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Base 12
Type/Method A

Cable Characteristics Units Value

Outer Diameter mm 7,5
Tensile Strength Max N 550
Crush N/100mm 1000
Strength Member Aramid Yarn
Operating Temperature °C -20 ~ +60
Minimum Bending Radius mm 10D (installed)/20D (loaded)
