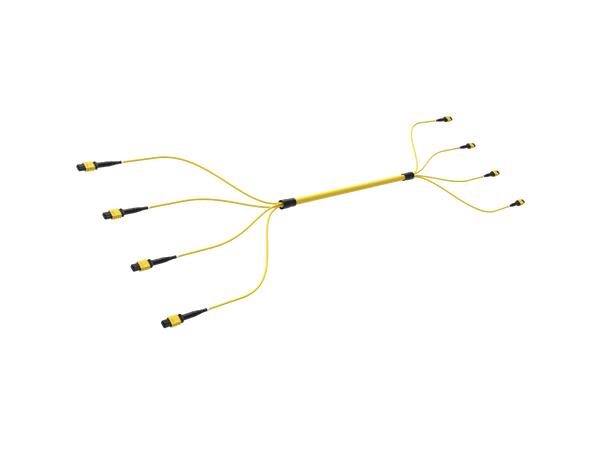

MPO Elite Trunk SM G657A2 Fiber Grade 48 Core Microcable LSZH
Factory Terminated and Tested with Attached test certificate
Labeled with Individual S/N
MPO push/pull release boot
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

Female to Female MPO Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Type/Method A

Cable Characteristics Units Value
Outer Diameter mm 7,5
Break out lenght: 0,5mtr
Tensile Strength N 550
Crush N/100mm 1000
Strength Member Aramid Yarn
Operating Temperature °C -20 ~ +70
Minimum Bending Radius mm 10D (installed)/20D (loaded)
