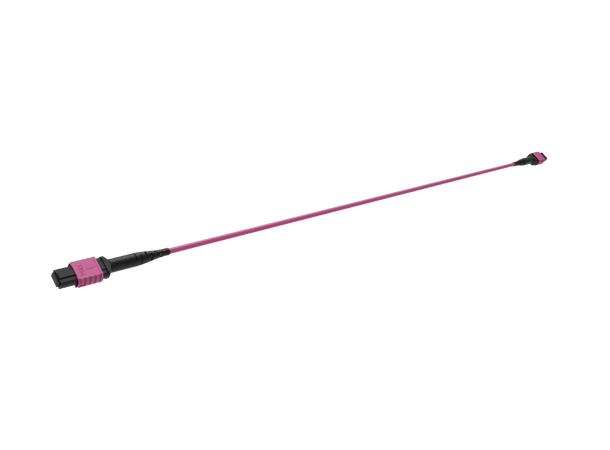

MPO Elite Trunk MM OM4 Fiber Grade 12 Core Microcable LSZH
Factory Terminated and Tested with Attached test certificate
Labeled with Individual S/N
MPO push/pull release boot
CPR Reaction to Fire Classification Certified Cca-s1a,d0,a1

Male to Male MPO Elite connectors
IL Average 0.10dB
IL Max 0.35dB
Type/Method B (Crossed)

Cable Characteristics Units Value

Outer Diameter mm 3.0
Tensile Strength Max N 200
Crush N/100mm 500
Strength Member Aramid Yarn
Operating Temperature °C -20 ~ +70
Minimum Bending Radius mm 10D (installed)/20D (loaded)
