OM4 Fiber Grade
12 Core Microcable Trunk
CPR Grade Cca-s1a,d0,a1
MTP® PRO connector Female-Female (unpinned) Base-12
Polarity A
IL Average 0.10dB
IL Max 0.35dB
Factory Terminated and Tested

Applications
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
Infiniband
Emerging 40 and 100Gbps Protocols

Standards Compliance
EN50575:2014 Cca-s1a,d0,a1 (CPR)
TIA/EIA-568-C.3 and ISO/IEC 11801
IEC-61754-7 & EIA/TIA-604-5
IEC 60332 (LSZH)
TIA/EIA 568-B.1-7

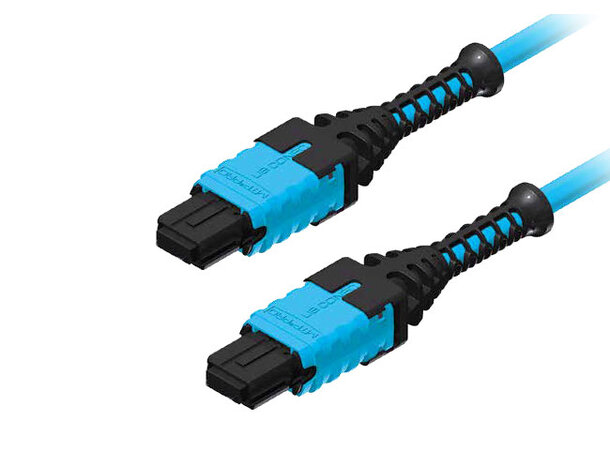

MTP Pro trunk assemblies are offered in fiber types in standard 12, 24, 48, 96 and 144 fiber core versions using a compact and rugged microcable structure. The compact cables optimize cableway use and improve airflow.
