Underwater Loose tube 48 Singlemode fibres
The cable type is intended for river and lakes or direct burial installation.

Shallow Water Applications to 100 m. Depths, Underwater/Sea Port.
Installed in soft bedded trenches or suitably anchored and protected on the sea-floor.

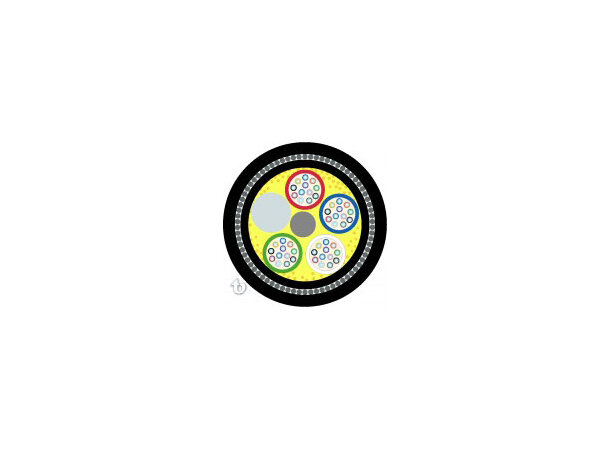

The cable contains 48 color coded SM G657.A1 optical fibers contained in 4 color-coded loose tubes. These tubes are filled with a thixotropic gel to prevent the ingress of water and are SZ stranded with 1 filler around a dielectric central strength member. An aluminum moisture barrier tape is longitudinally laid over the fiber-glass strength yarns which reinforce the cable core. An inner jacket is extruded over the aluminum tape. A layer of galvanized steel wires is stranded around the inner jacket to serve as armor. An outer jacket completes the cable structure.

 Packaging: Drum (2000m)
Number of optical fibres: 48
Nominal outer diameter: 15,8 mm
Approximate weight: 435 kg/km

Applicable Standards
IEC 60794, IEC 60794-1-21/22, TIA/EIA-568
Color code: S12,
Tube color: red, blue, white, green

Installation
Guidelines as per IEC TR 62691
