FlexScan LIVE-OTDR PRO-kit, 1310/1550/1650 LIVE/PON OTDR inklusive 150m Fiberring SC/SC, OneClick samt FOCIS Flex + 2 SC-Tips
Fast, accurate SmartAuto OTDR network characterization or fault location

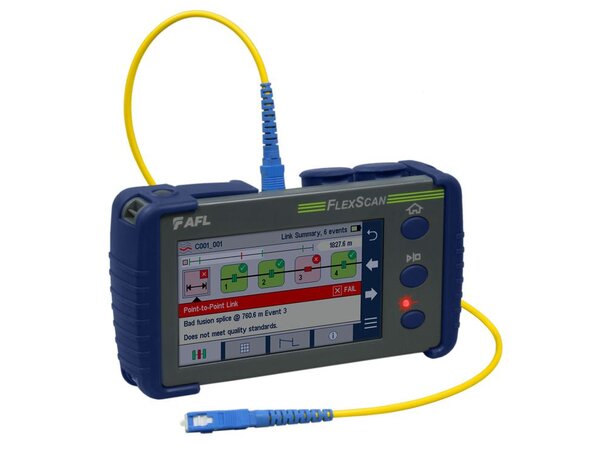

Easy to understand LinkMap results with pass/fail indications
1550 only or 1310/1550 OTDR
Rugged & pocket-sized; < 1 lb (0.4 kg)
Large, bright indoor/outdoor touchscreen

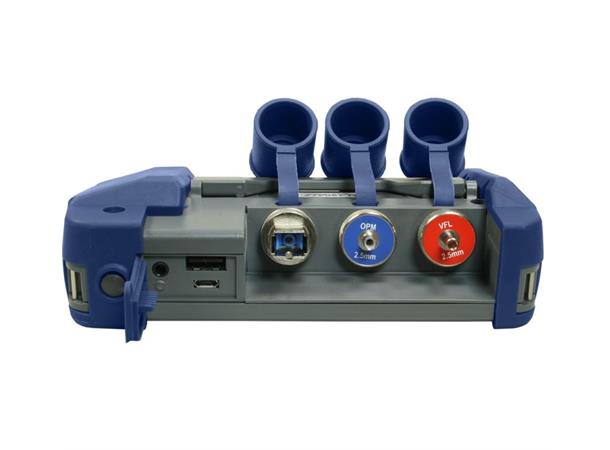

Integrated VFL, plus Wave ID source and power meter
Bluetooth, Wi-Fi and USB communications
Fast, accurate single-mode fiber fault location using OTDR and VFL
Single-mode optical network characterization using OTDR
Single-mode loss testing using integrated source & power meter
Pocket-sized, Performance-packed, Easy to Use and Affordable
FlexScan OTDRs enable both novice and expert technicians to quickly and reliably troubleshoot optical networks or fully characterize newly installed or repaired networks. Using FlexScan’s innovative SmartAuto mode, multiple OTDR scans quickly and accurately detect, locate, identify and measure network components and faults. After applying industry-standard or user-set pass/fail criteria, the characterized network is displayed using FlexScan’s intuitive, icon-based LinkMap view.
FlexScan automates test setup, shortens test time and simplifies results interpretation, improving efficiency and reducing the cost of test. Acquired results may be stored internally or externally. Internally stored results are easily accessed via USB, Bluetooth or Wi-Fi.
With optional connector inspection, integrated source, power meter and VFL, FlexScan offers an all-in one solution, ensuring technicians have everything they need to locate and resolve optical network issues.
