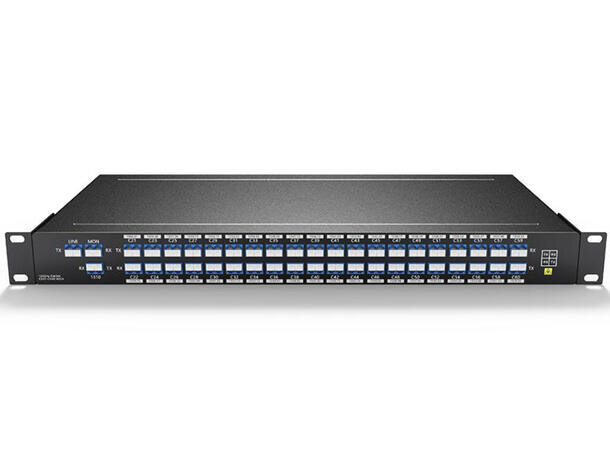

T-DMUX-40-2160-MLU is a passive DWDM Mux/Demux that combines and separates optical wavelength channels. This 19-inch 1U rack version provides 40 channels for dual fiber networks, making it suitable for wavelength-based expansion of existing fiber infrastructure. Its channel configuration is C21-C60; 100 GHz spacing.
Select the unit by its channel plan, fiber arrangement and connector type. The multiplexer routes optical wavelengths; the connected transceivers and available optical budget determine the usable service rate and transmission distance.
Key specifications
Product type Passive DWDM Mux/Demux
Channel configuration 40 channels
Channel plan C21-C60; 100 GHz spacing
Fiber arrangement Dual fiber
Optical connectors LC/UPC
Housing 19-inch 1U rack
Additional ports 1310 nm (1260-1360 nm) and MON
Insertion loss Wavelength ports =3.5 dB; link =7 dB
Operating temperature -5 to +65 °C
Installation requirements
Match the optical channel plan and connector polish at both ends, and verify the complete link budget before installation.
