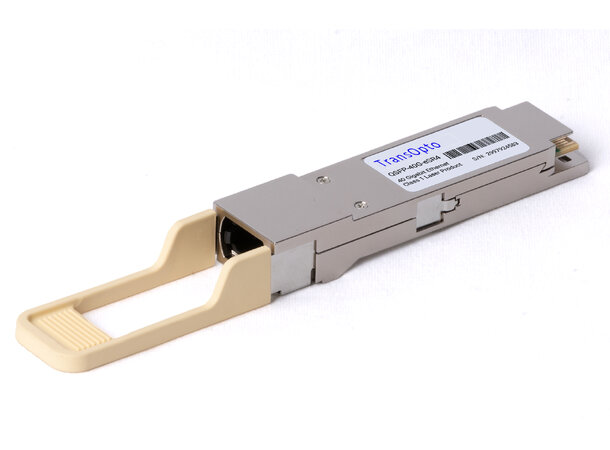

QSFP+, 40GbE-eSR4, 4 x 10.3 Gbps, 300m 850nm, 2dB, MM, MPO-12

QSFP+, 40GbE-eSR4, 4 x 10.3 Gbps, 300m

850nm, 2dB, MM, MPO-12

Artikelnummer: QSFP-eSR4-40G
BeskrivningTeknisk infoDokumentation
Beskrivning

Key Features
4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 300m transmission
CML compatible electrical I/O
Single +3.3V power supply operating
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
TX Power: -8~1.0dBm
Receiver Sensitivity: < -13dBm
Powerbudget: 5dB

Application
Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR

Teknisk info

Produktinformation

Avstånd < 1 km
DDM Ja
Formfaktor QSFP+
Kontakt MPO
Mediatyp MPO Multimod
