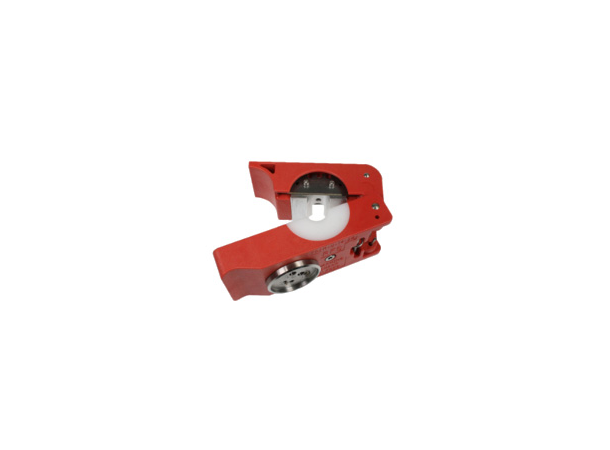

Combination preparation tool (Universal Trimming Tool), CELLFLEX® Cable 1/2" for connector family Omni Fit C02

This special trimming tool improves the cable preparation prior to connector attachment. No further tools are required to prepare the cable for the connector attachment. This is due to the unique design of the trimming tool, which combines all necessary functions in one tool. It can be used for all CELLFLEX® LCF12-50 cables in combination with the OMNI FIT Standard connector family C02.

The Universal Trimming Tools Series offers the additional advantage to be convertible to different connector series and cable sizes (1/4"", 3/8"", 1/2"" and 7/8"") only by changing the insert. Different inserts are available as optional items, for references see below or contact your RFS sales contact.

FEATURES / BENEFITS
Universal Trimming Tool concept
One basic tool can be used for cables sizes 1/4"", 3/8"", 1/2"" and 7/8"" only by changing the insert
Precision cable preparation tool
Always exact and repeatable trimming dimensions
Intuitive use of tool
Easy and precise preparation of cables for connector installation
Long-lasting cutting blades
Easy to clean, smooth dielectric surface improves IM performance
