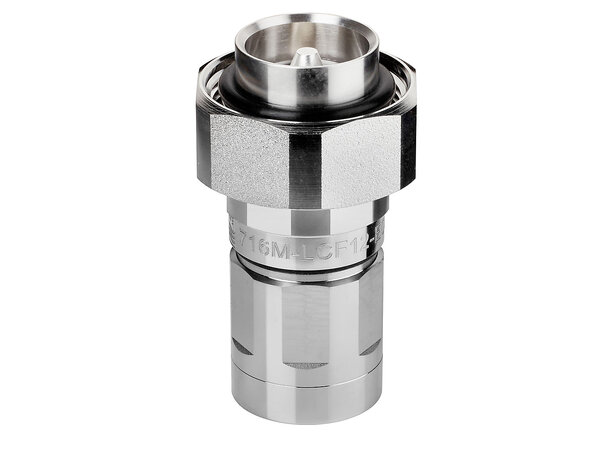

RFS 7-16 DIN Male Connector OMNI FIT for 1/2 CELLFLEX

RFS 7-16 DIN Male Connector OMNI FIT

for 1/2 CELLFLEX

Artikelnummer: 716M-LCF12-E01

7-16 DIN Male Connector for 1/2" Coaxial Cable, OMNI FIT™ Premium, Straight, O-Ring and compression sealing.

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment.

All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. Sealing against outer conductor and jacket by means of the o-ring and 360  compression fit.


Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
Two-piece design i.e. visual inspection of interlocking leads to improved installation security
OMNI FIT™ concept i.e. streamlined order management and reduced stock level
Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
