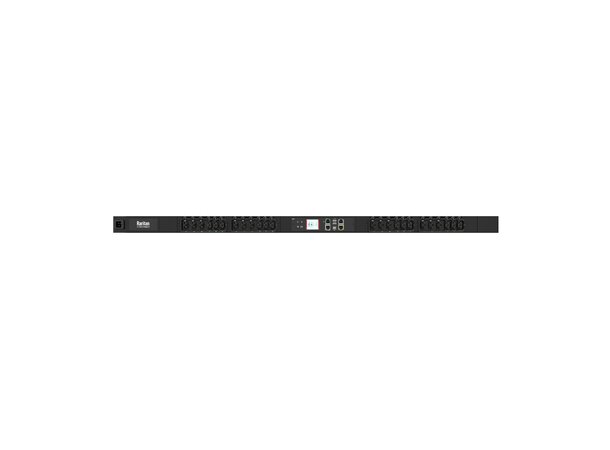

Inlet metered + outlet Metered Power Distribution Unit, IEC C20 100-240V Inlet, 3.8 kvA, Bottom/Angled input, 24 outlets: 12x C13, 12x combined C13/C19 outlets, FEATURES: Billing-Grade (± 0.5%) Energy and Power Quality Metering [kW, kVA, V, A, Voltage and Current Harmonic Distortion, True and Displacement Power Factor, Voltage Dip and Voltage Swell, Neutral Current and Voltage, Current Inrush, and Crest Factor]. Remote network monitoring via HTML, JSON-RPC, Redfish API, SSH, Telnet, MODBUS/TCP, and SNMPv3. Hot-swappable Controller with onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Physically cascade 32 PDUs under one Ethernet port or 16 PDUs with USB. Linking (Shared GUI) of up to 8 PDUs. Environmental monitoring [temp/humidity] capable – up to 32 sensor functions or 12 sensor packages. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. Data logging via HTTP/S or MQTT. Wi-Fi Capable. USB Webcam Capable. iOS or Android App. Dual 10/100/1000 Ethernet port. Mechanical locking function for Outlets. 16A Breakers, 10kAIC. Breaker metering and alarming (0V detection). Maximum ambient temperature 60°C at full load. Attested passed VAPT (Vulnerability Assessment and Penetration Testing), IPv6 Ready, ISO 27001 compliant.

Vendor: Raritan; Part Number: PX4-43A8C-C8E7A0
