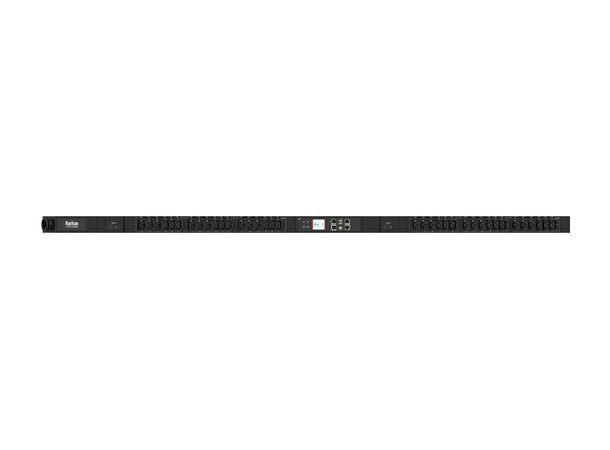

1PH, 230V, 32A, 36 Outlets: 18 x Locking C13, 18 x Locking Cx, Input: IEC 60309 2P+E 32A, 0U, 7.4kVA, 2 x 10kAIC breakers, Input Metered, iX controller with 2 x 10/100/1000 ETH port, 2 x USB-A, 1 x USB-B, RJ-45 Sensor and PDU Link port Features: 10kAIC Breakers, 60C, Branch Current Monitoring Shipping Weight: 16.53 lbs. (7.5 kg) Shipping Dims: 1940 x 255 x 125 mm

FEATURES
Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy: Class 0.5 meter (see page 3 for details)
Metering per Input Line: Yes
Metering per Branch Circuit Breaker: Yes
Metering per Output Receptacle: No
Remote Outlet Switching: No
Power Quality Monitoring: Voltage and Current Harmonic Distortion; Distortion Power Factor; Voltage Dip and Voltage Swell; Neutral Current, Current Inrush, Crest Factor
Outlet Power Distribution: Alternating Branch
Replaceable Controller: Yes, hot-swappable
Environmental Sensor Ready: Yes
Networking: Gigabit (10/100/1000 BaseT) Ethernet port; Secondary, redundant (10/100/1000 BaseT) Ethernet port; Optional Wi-Fi (802.11a/b/g/n)
Remote Management: HTTP(s); SSH (CLI); Telnet; RS-232 (Serial); SNMP version v2/v3; SMTP; JSON-RPC API; MODBUS-TCP; Redfish API
Cascading :Yes, Max 16 PDUs can be daisy chained using a USB connection and 32 PDUs using Ethernet connection
Linking: Yes, a maximum of 8 PDUs can be linked using the PDU Link Port; PDU 1 is defined as the Primary PDU and can link up to 7 additional PDUs, called Link PDUs, totaling 8 PDUs

INPUT
Input Plug: IEC 60309 2P+E 6h 32A (2P3W)
Cord Length: 3 meters (9.84 feet) standard
Cord Entry: Bottom-front feed
Number of Power Cords: 1
Input Current, Maximum: 32A
Input Current, Rating: 32A
Input Voltage, Nominal: 230V
Input Voltage, Rated: 200 - 240V
Input Frequency: 50/60Hz
Power Capacity: 6.4kVA at 200V, 7.7kVA at 240V

OUTPUT
Voltage, Nominal: 230V
Voltage, Rated: 200 - 240V
Receptacles (Output Connections): (18) IEC320 C13 Locking, 10A; (18) Cx Locking, 16A
Outlet Indicators: Yes, R/G/B LEDs; Outlet Powered On/Off, Above/Below Threshold, Outlet Service Mode - Outlet On/Off, Suspect Outlet/Trip Forensics - Outlet Off, Circuit Breaker Trip/Fuse Blown - Outlet On/Off, Boot Up Sequence
Outlet Locking: Yes
SecureLock (P-lock) Support: Yes
Overload Protection: (2) LEJBXV6-16

PHYSICAL
Color: Black powder coat (custom colors available)
Material of Construction: Extruded Aluminum
Unit Dimensions (WxDxH): 2.2" x 2.6" x 70.1" ; 56mm x 65mm x 1780mm
Unit Weight: 5.1 kg
Shipping Dimensions (WxDxH): 10.04" x 4.92" x 76.38" ; 255mm x 125mm x 1940mm
Shipping Weight: 7.5 kg
Mounting: Tool-less button mount

ENVIRONMENTAL
Operating Temperature: 60°C
Operating Relative Humidity: 5% to 95% (non-condensing)
Operating Elevation: 0 to 3048m; 0 to 10,000ft
Storage Temperature: -30 to 80°C/ -22 to 176°F
Storage Relative Humidity: 0% to 95%
Storage Elevation: 0 to 15,000m; 0 to 50,000ft

CONFORMANCE
Regulatory Approvals: CE, Canada ICES-003, Part 15 Class A of the FCC rules, RoHS compliant
Warranty: 2-year manufacturer warranty

ACCURACY
Input Measurement - Output Measurement
LCD & GUI Current: ±0.2% at 0.01 A resolution - ±0.2% at 0.01 A resolution
Voltage: ±0.2% at 0.1 V resolution - ±0.2% at 0.1 V resolution
Voltage, Neutral: ±1% at 0.1 V resolution - n/a
Current, Neutral: ±0.5% at 1% FS resolution (FS is PDU ampere rating) - n/a
Active Power: ±0.5% at 1 W resolution - ±0.5% at 1 W resolution
Apparent Power: ±0.5% at 1 VA resolution - ±0.5% at 1 VA resolution
Reactive Power: ±1% at 1 VA reactive resolution - ±1% at 1 VA reactive resolution
Power Factor: ±1% at 0.01 resolution - ±1% at 0.01 resolution
Crest Factor: ±1% at 0.1 resolution - ±1% at 0.1 resolution
Active Energy: ±0.5% at 0.1 kWh resolution - ±0.5% at 0.1 kWh resolution
Apparent Energy: ±0.5% at 0.1 kVAh resolution - n/a
Reactive Energy: ±1.0% at 0.1 kVAh resolution - ±1.0% at 0.1 kVAh resolution
Voltage, Harmonic Distortion: 1.0% 1.0%
Current, Harmonic Distortion: 5.0% 5.0%

Branch Measurement
Current: ±1% at 0.01 A resolution

FEATURES
Controller Version: iX9
Swappable/Replaceable: Yes, hot-swappable
Onboard Display: Voltage, current, or active power (per line, or per receptacle/outlet); Alarms; Configuration information (name, ratings, IP/Networking information); Auto-flip orientation
SmartSensors: Yes, compatible sensors: Temperature, Humidity, Airflow, Differential Air Pressure, Water/Leak, Dust/Particle, Proximity/Motion, Vibration, and Sensor Hubs
SmartLock: Yes, compatible sensors: Contact and Contact Closure

PANEL FEATURES
Control Buttons: Navigate to the menu in the manual mode (Up, Down, Back, or Switch between automatic and manual modes, OK)
Multi-Color LCD: Shows information on the device, built-in components, and connected peripheral devices
Reset Button: Restarts the device's firmware without any loss of power to outlets
Dual Networking Gig E 10/100/1000 Ethernet Ports: Supports up to 1000 Mbps; also supports extended cascading
Dual (2) USB-A Ports: Supports USB-A wireless LAN adapters; iOS mobile devices; cascading for sharing a network connection. Power rating 5V/500mA
USB-B Port: Supports CLI and cascading for sharing a network connection
PDU Link Port: For power sharing, cascading, and current monitoring
Sensor Port: RJ45 connector; Power/control sensor packages/actuators, current monitoring; also supports Sensor Hubs

TENDER TEXT/BID SUBMITTAL TEXT
Inlet metered Power Distribution Unit, IEC 230V/32A 2P+PE 6Hr, 7.4 kvA, Bottom/Angled input, 36 outlets: 18x C13, 18x combined C13/C19 outlets, FEATURES: Billing-Grade (± 0.5%) Energy and Power Quality Metering [kW, kVA, V, A, Voltage and Current Harmonic Distortion, True and Displacement Power Factor, Voltage Dip and Voltage Swell, Neutral Current and Voltage, Current Inrush, and Crest Factor]. Remote network monitoring via HTML, JSON-RPC, Redfish API, SSH, Telnet, MODBUS/TCP, and SNMPv3. Hot-swappable Controller with onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Physically cascade 32 PDUs under one Ethernet port or 16 PDUs with USB. Linking (Shared GUI) of up to 8 PDUs. Environmental monitoring [temp/humidity] capable – up to 32 sensor functions or 12 sensor packages. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. Data logging via HTTP/S or MQTT. Wi-Fi Capable. USB Webcam Capable. iOS or Android App. Dual 10/100/1000 Ethernet port. Mechanical locking function for Outlets. 16A Breakers, 10kAIC. Breaker metering and alarming (0V detection). Maximum ambient temperature 60°C at full load. Attested passed VAPT (Vulnerability Assessment and Penetration Testing), IPv6 Ready, ISO 27001 compliant.

Vendor: Raritan; Part Number: PX4-1057-E7

ADDITIONAL INFORMATION
Warranty: Raritan offers a standard 2-year limited parts and labor warranty. Extended support is available
at the time of purchase. Contact your local Raritan representative for more information.

Patents: Information on Raritan patents is available at www.raritan.com/patents

"Global" models are typically for use in countries outside of North America. Contact your local Raritan
representative for more information about which models are appropriate for your application.

Information in this document is current as of time of publishing. Contact your local Raritan representative
for the most up-to-date information.

This datasheet was generated on June 25, 2025.
