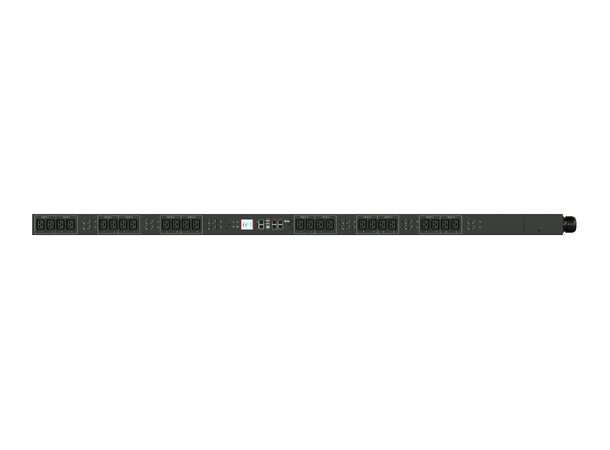

3PH, 400V AC, 63A (63A/PH rated); 24 outlets: 24x C19; plug: IEC 60309 3P+N+E 6h 63A (Wye Top-top feed), 43.6kVA; Unit Metered, Zero U vertical PDU, SecureLock ready, high resolution color display with field replaceable controller, Ethernet, serial, 2x USB-A, USB-B and sensor connections

FEATURES
Energy Metering: Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy: ISO/IEC 62053-21 1% (see page 3 for details)
Metering per Input Line: Yes
Metering per Branch Circuit Breaker: Yes
Metering per Output Receptacle: No
Remote Outlet Switching: No
Environmental Sensor Ready: Yes
Replaceable Controller: Yes
Compatible Sensors: Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure
Networking: Gigabit (10/100/1000 BaseT) Ethernet port; secondary, redundant (10/100/1000 BaseT) Ethernet port. Optional WiFi (802.11a/b/g/n)
Remote Management: HTTP(s); SSH; Telnet; RS-232 (Serial); Power IQ; SNMP version v2/v3; SMTP; JSON-RPC; Modbus over TCP
Cascading: Yes, Max 32 PDUs can be daisy chained using a USB connection and 32 PDUs using Ethernet connection
Onboard Display: Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking information); Auto-flip orientation
Embedded Processor: ARM Cortex A5 536MHZ (Atmel A5D35A), 16MB SPI Flash, 64MB DDR2 RAM

INPUT
Input Plug: IEC 60309 3P+N+E 6h 63A (4P5W), IP67
Cord Length: 3 meters (9.84 feet) standard
Cord Entry: Top-end feed
Cable Type: N-S LSOH 5G16.0
Number of Power Cords: 1
Maximum Input Current: 63A
Nominal Input Voltage: 400V 3 phase
Rated Input Voltage: 380 - 415V 3 phase
Input Frequency: 50/60Hz
Power Capacity: 41.5kVA at 380V, 45.3kVA at 415V

OUTPUT
Nominal Output Voltage: 230V
Rated Output Voltage: 220 - 240V
Receptacles (Output Connections): (24) IEC320 C19, 16A
Securelock Support: Yes
Cord Retention: Yes
Overload Protection: (12) Airpax LEGBX6-37483-16-V, 5KAIC

PHYSICAL
Color: Black powder coat (custom colors available)
Unit Dimensions: (WxDxH) 2.8" x 3.1" x 70.1" ; 70mm x 80mm x 1780mm
Unit Weight: 11.7 kg
Shipping Weight: 15.6 kg
Shipping Dimensions: (WxDxH) 18.31" x 6.69" x 83.19" ; 465mm x 170mm x 2113mm
Mounting: Tool-less button mount

ENVIRONMENTAL
Operating Temperature: 60°C
Operating Relative Humidity: 85%
Operating Elevation: 0-6000ft

CONFORMANCE
Regulatory Approvals: CE, Canada ICES-003, Part 15 Class A of the FCC rules, RoHS compliant
Warranty: Standard 2 years manufacturer warranty

ACCURACY
Input Measurement
LCD & GUI Current: ±1% at 0.1 A resolution
Voltage: ±1% at 0.1 V resolution
Active Power: ±1% at 1 W resolution
Apparent Power: ±1% at 1 VA resolution
Power Factor: ±1% at 0.1 resolution
Active Energy: ±1% at 0.1 kWh resolution

Branch Measurement
Current: ±1% at 0.1 A resolution

TENDER TEXT/BID SUBMITTAL TEXT
Monitored rack power distribution unit (0U [vertical], 43.6kVA, 24 outlets). INPUT: 400v (3-phase WYE), 63a - IEC 60309 3P+N+E 6h 63A plug (4P5W); OUTPUT: 24@ C19, 12@ outlets; on 12@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Remote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Onboard embedded processor with minimum 536MHz clock speed, 16MB SPI Flash, and 64MB DDR2 RAM. Cascading upto 16 PDU's using single Ethernet or USB connection. Environmental monitoring [temp/humidity] capable – up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Dual 10/100/1000 Ethernet port. Breaker metering and alarming (0V detection). Max Dimensions 70mm x 80mm x 1780mm (2.8in x 3.1in x 70.1in). Max Weight 11.7 kg. Maximum ambient temperature 60C at full load.

Vendor: Raritan; Part Number: PX3-1394U
