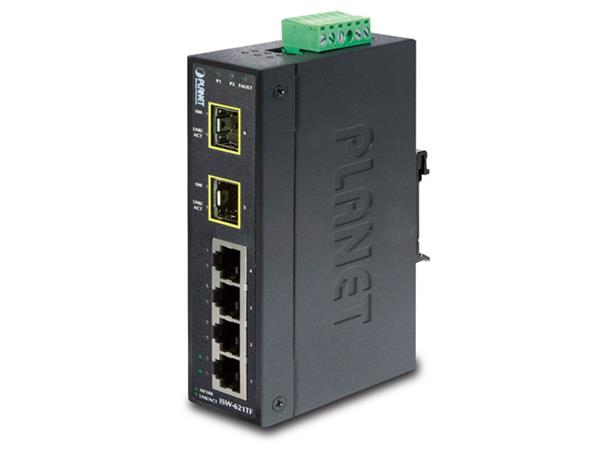

Industriell Switch 4-port 10/100B/Tx+F/O
Industriell Switch 4-port 10/100B/Tx+F/O
Planet: +2-port SFP F/O
Artikelnummer:
ISW-621TF
Offert
Spara i produktlistan
PDF Datablad
Beskrivning
Support
Alternativ
Andra köpte också
Gå til kjøp
Offert
Beskrivning
• Physical Port
–4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function
–2-port 100Base-FX SFP interface
• Layer 2 Features
–Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
–Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
–High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
–Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
–Backplane (Switching Fabric): 1.2Gbps
–Integrated address look-up engine, supports 2K absolute MAC addresses
–1Mbit on-chip frame buffer
–Automatic address learning and address aging
–CSMA/CD Protocol
• Industrial Case / Installation
–IP-30 metal case protection
–DIN rail and wall mount design
–12 to 48V DC, redundant power with polarity reverse protection and connective removable terminal
block for master and slave power
–Supports EFT protection 6KV DC for power line
–Supports 6KV DC Ethernet ESD protection
–-40 to 75 degrees C wide operating temperature
