High-capacity Unit for Factory and Metropolitan Long-reach Networking

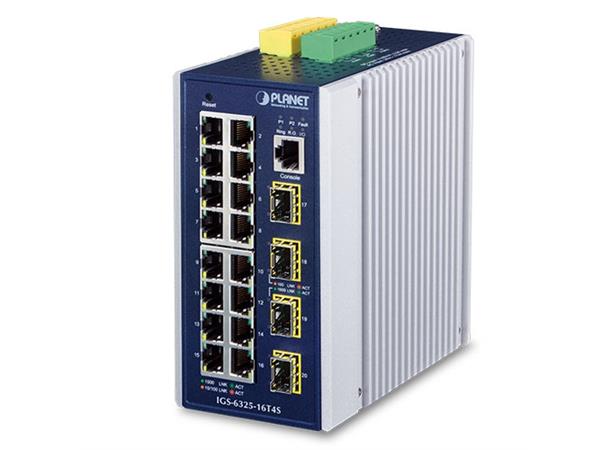

PLANET IGS-6325-16T4S is the smallest yet high-capacity, industrial-grade Layer 3 managed switch with high-density hybrid copper and fiber optic interfaces. It features 16 10/100/1000BASE-T RJ45 ports and 4 100/1000BASE-X SFP slots in a DIN-rail type rugged case and can operate stably under the temperature range from -40 to 75 degrees C.
It is designed to be installed in any space-limited cabinets as it is small in size. Its connection distance can be flexibly extended via its powerful ports.

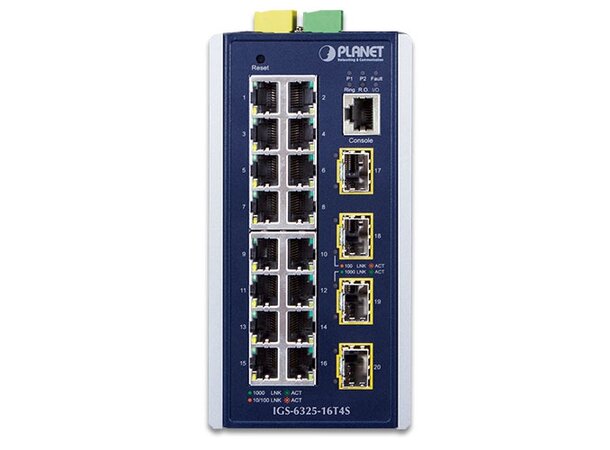

Physical Port
16 10/100/1000BASE-T RJ45 copper ports
4 100/1000BASE-X SFP slots for SFP type auto detection
One RJ45-to-RS232 console interface for basic management and setup
Industrial Hardened Design

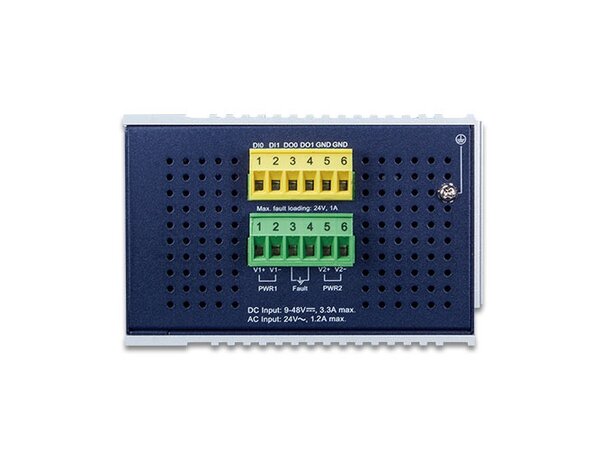

Dual power input, redundant power with reverse polarity protection
- DC 9 to 48V input or AC 24V input
- Active-active redundant power failure protection
- Backup of catastrophic power failure on one supply
- Fault tolerance and resilience
- DIN-rail and wall-mountable designs
- IP30 aluminum case
- Supports 6KV DC Ethernet ESD protection
- -40 to 75 degrees C operating temperature
Digital Input and Digital Output
- 2 Digital Input (DI)
- 2 Digital Output (DO)
- Integrates sensors into auto alarm system
- Transfers alarm to IP network via email and SNMP trap
