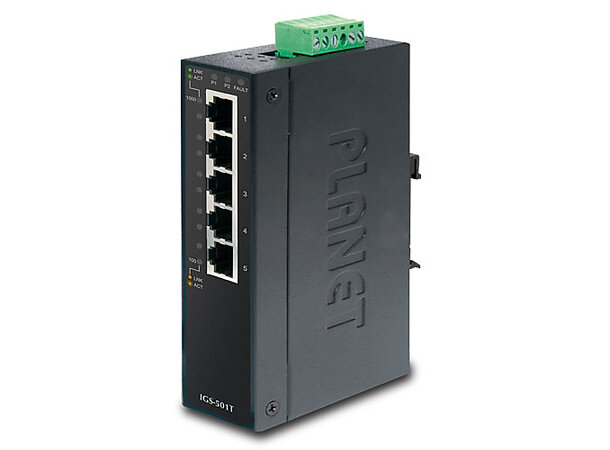

Physical Port

5-port 10/100/1000Base-T RJ-45 with auto MDI/MDI-X function

Layer 2 Features

Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode
High performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Backplane (switching fabric): 10Gbps
Integrated address look-up engine, supporting 2K absolute MAC addresses
1M bits on-chip buffer memory
9K Jumbo packet size support
Automatic address learning and address aging
CSMA/CD Protocol

Industrial Case / Installation

IP30 metal case
DIN rail and wall-mount design
12 to 48V DC, redundant power with polarity reverse protect function and connective, removable terminal block for master and slave power; 24V AC power support
Supports EFT protection 6000V DC for power line
Supports 6000V DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
