Description:

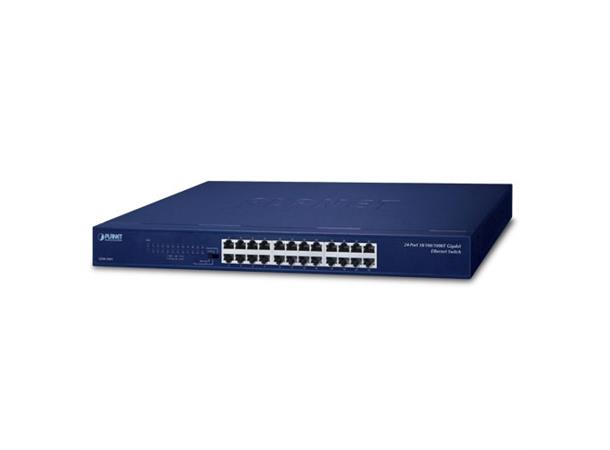

The PLANET GSW-2401 is 10/100/1000Mbps Gigabit Ethernet switch with 24 ports respectively, and non-blocking wire-speed performance. With a 48Gbps internal switching fabric, the GSW-2401 can handle extremely large amounts of data in a secure topology linking to a backbone or high capacity servers. The GSW-2401 has 8K MAC Address table and provides 400KB buffer memory. The GSW-2401offers wire-speed packets transfer performance without risk of packet loss. All RJ-45 copper interfaces support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables.
Key Features:
• Complies with IEEE802.3, 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
• 24-Port 10 / 100 / 1000Mbps Gigabit Ethernet ports
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
• IEEE802.3x flow control for full duplex operation and Backpressure for half duplex operation
• Integrated address look-up engine, support 8K absolute MAC addresses
• Provide 400KB buffer memory
• 9K Jumbo packet support
• Automatic address learning and address aging
• Supports Auto MDI / MDI-X function
• Support CSMA / CD protocol
• 100~240VAC, 3.0A, 50~60Hz universal Power input
• FCC, CE class A compliant
