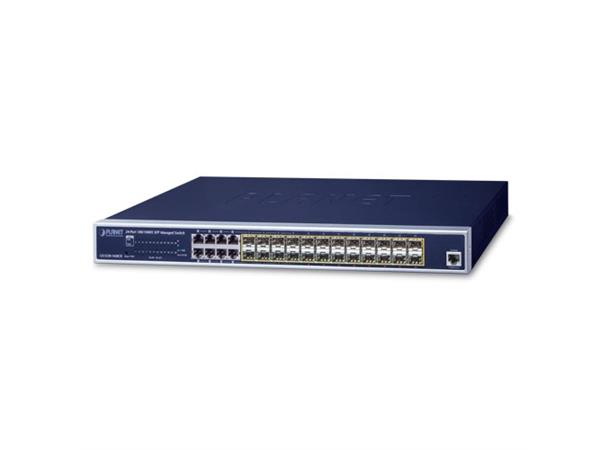

Layer 2+ Managed Core Fiber Switches GS-5220-16S8CR provide high-density performance and support IPv4 and IPv6 hardware Layer 3 static routing and 24 100/1000Base-X dual-speed SFP slots in a 1U case. As a fiber backbone switch, they can flexibly work with suitable SFP transceivers to have a long connection of up to 120km via optic fiber cabling.
Physical Port
• 24 100/1000Base-X mini-GBIC/SFP slots
• 8-port 10/100/1000Base-T Gigabit Ethernet RJ-45, shared with Port-1 to Port-8
• RJ45 to RS-232 DB9 console interface for basic management and setup
Layer 2 Features
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
• Supports VLAN
• Supports Spanning Tree Protocol
• Supports Link Aggregation
• Provides Port Mirror (many-to-1)
• Port Mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
Layer 3 IP Routing Features
• Supports maximum 128 static routes and route summarization
