Jonard Skalverktyg koax F6/59 kablar

1/4" avmantling 59, 6 kontaktyper

Artikelnummer: CSS-596
BeskrivningSupportTillbehör
Beskrivning

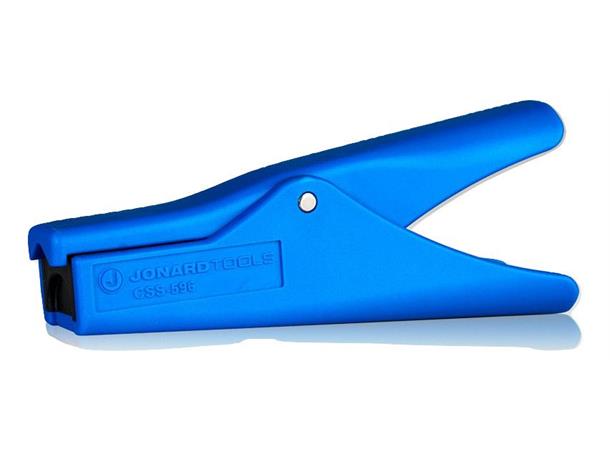

The CSS-596 is a coaxial cable stripper specifically designed to strip the stub end of a coax cable in a wall outlet, exposing 1/4" of braid and 5/16" of the center conductor, which eliminates the need to run new cable. This coaxial cable stripper features the following:

Easy to use: Simply insert cable, rotate like a screwdriver, and remove to strip
Will not cut or damage the braid or score the center conductor
High carbon steel blades last for over 5,000 strips on each side
Hook and loop strip on bottom of tool is used to fold back braid on cable after being stripped
Can be used with other blade cartridges, such as the CSS-110/115/120/125/130/135
Replacement cartridge for this tool is: CSS-105
Blade Replacement Instructions:

To replace blade cartridge: open jaws and push upwards on the front of the blade cartridge. Cartridge will lift out.
To install new blade cartridge: insert cartridge into tool and close jaws. Give the jaws a squeeze to insure the blade locks into place.
