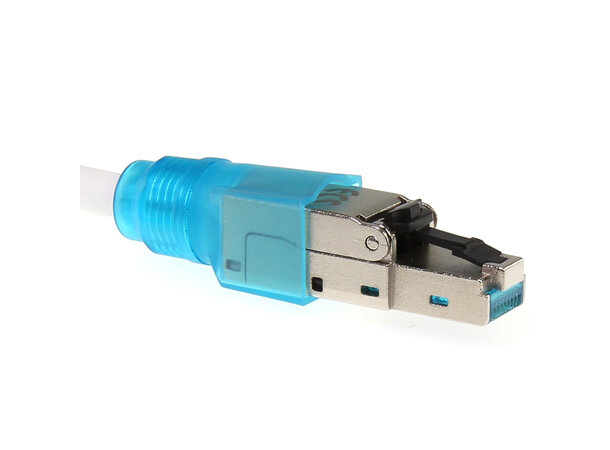

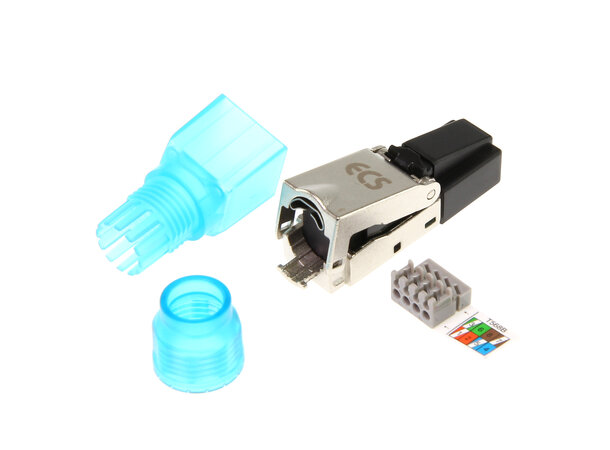

ECS RJ45 Field Plug STP C6A

Artikelnummer: AFPSC6A
BeskrivningDokumentationAlternativAndra köpte också
Beskrivning

RJ45 Plug C6A STP, kan användas till både skärmad och oskärmad kabel, solid eller flertrådig ledare. Kontaktering utan specialverktyg.
För direktanslutning vid ex. IP kamera.

Specifications
Comply with IEC 60603-7-5
Plug Housing: Zinc Alloy
Protection category: IP 20
Plug Pins: Phosphor bronze with 50u” gold plating
Durability: 750 mechanical cycles
Current rating: 1.5A
Dielectric withstanding voltage: 1000V DC
Insulation resistance: 500M O MIN.
Contact resistance: 20m O MAX

Features
Transmission performance: Cat.6A /Class EA
Wiring label: TIA 568B
Termination capability:
22~26 AWG solid wire
22 ~27 AWG stranded wire
Re-termination capability: 5 times
Supporting cable diameter: 6~9mm
UL Listed
PoE+ compliant
4PPoE compliant
Operation temp.  -40°C to +70°C.
Comply to climatic and chemical rating C3 (MICE / Climatic Chemical)
