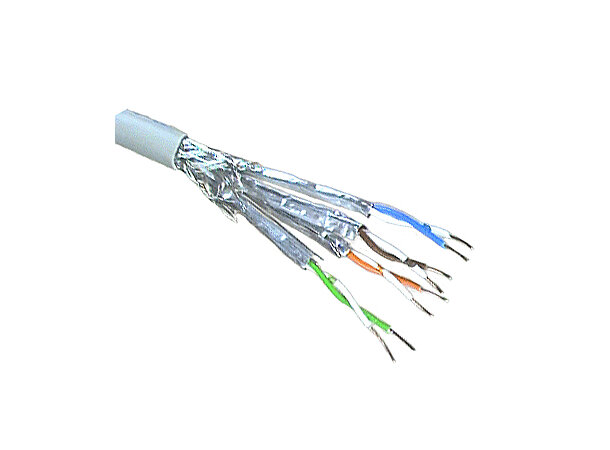

GigaDor Cat.7 4x(2x23 AWG) S/FTP PiMF
Skärmad halogenfri solid kategori 7-kabel för inomhusbruk försedd med individuellt skärmade par med en gemensam folie och skärmstrumpa.
GENERAL CONSTRUCTION
The cable contains 4 individually foil-shielded twisted pairs (aluminum face upward), cabled together with a drain wire, overall braid-shielded and jacketed with a FR-LSZH compound. It exceeds IEC 61156-5 Cat. 7 transmission requirements.
DETAILED CONSTRUCTION:
Conductor : Bare copper 23 AWG
Insulation: SFS PO, 1.35 mm nom.
Total weight: 65 Kg/Km, nom.
Overall diameter: 8.0 mm. nom.
Storage Temp. Range : -30 to +70C
Installation Temp. Range : -5 to +50C
Flame Test: UL VW-1, and IEC 60332-1, EN 50575:2014 Dca s1d2a1 (CPR)
Min. Bend radius: 10xD mm. during installation, 8xD mm. Permanent
Pulling force: 130 N max. during installation
