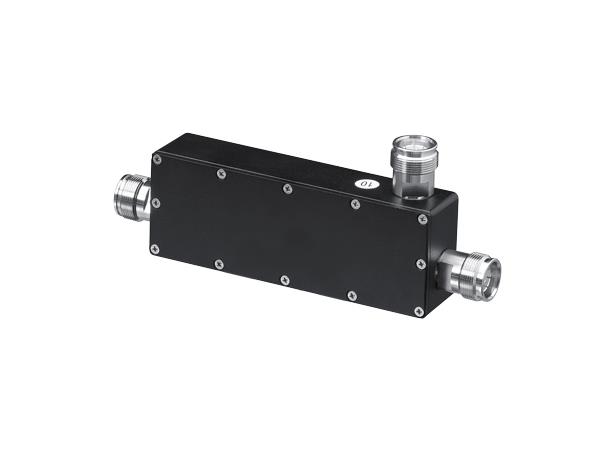

Broadband Directional Coupler for Wireless & Indoor Application, 555-6000MHz, 6dB Coupling Loss

PRODUCT DESCRIPTION

RFS' CDS*-43 series of Directional Couplers have been designed for a variety of wireless applications in the frequency band from 555 to 6000MHz. The units couple off a defined fraction of a RF signal from 5 to 30 dB (depending on the model number) with minimal reflections or loss. The broad frequency range is ideally suited for multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables.

FEATURES / BENEFITS

• Broadband 555MHz-6000MHz
• 4.3-10 Female Interface
• PIM Optimized Design (163dBc @2x43dBm)
• Low Insertion Loss
• High Power Handling
• Small Size, Low Weight
