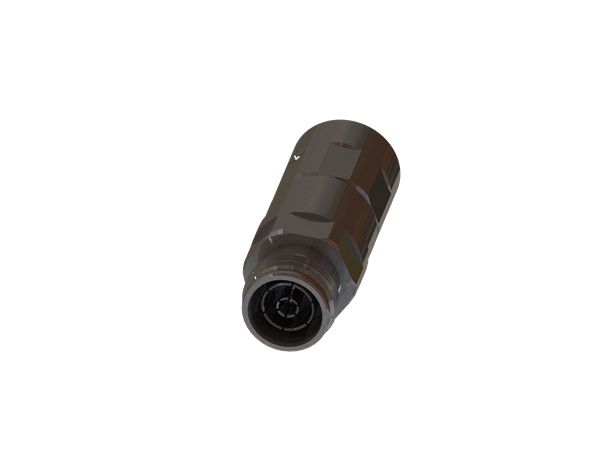

RFS 4.3-10 Female Straight Connector1/2" OMNI FIT Premium, O-Ring + Comp. sealing

RFS 4.3-10 Female Straight Connector1/2"

OMNI FIT Premium, O-Ring + Comp. sealing

Artikelnummer: 43F-LCF12-E01

OMNI FIT™ high performance connectors are designed for use with both CELLFLEX® (copper) and CELLFLEX® Lite (aluminium) cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 4.3-10 connector is an innovative, space-saving RF connection meeting all requirements even under the most severe environmental conditions and not relying on coupling nut torque. Sealing against outer conductor and jacket by means of the o-ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.

Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
Two-piece design i.e. visual inspection of interlocking leads to improved installation security
OMNI FIT™ concept i.e. streamlined order management and reduced stock level
Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis
