Industriell Switch 8-Port 1000T PoE

+ SFP 2-Port 100/1000X, LCD, Wall-mount

Artikelnummer: WGS-5225-8T2SV
BeskrivningTeknisk infoSupport

Physical Port
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection

Industrial Case and Installation

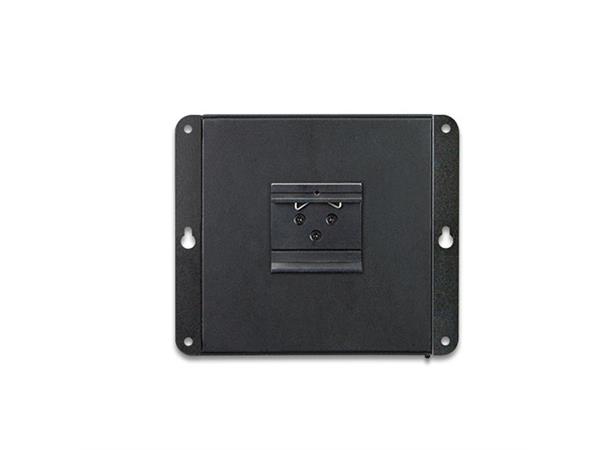

Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
IP30 metal case
Supports -20 to 70 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Redundant power input design
- 12V~48V DC wide power input with polarity reverse protect function
- 3-pin terminal block or DC jack connector

Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
- Broadcast/Multicast/Unicast
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4094 VLAN IDs
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN- Voice VLAN
Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN- BPDU Guard
Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
- Maximum 5 trunk groups with 2 ports per trunk group
- Up to 2Gbps bandwidth (duplex mode)
Provides port mirror (1-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)

Layer 3 IP Routing Features
Supports maximum 32 static routes and route summarization

Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
- IEEE 802.1p CoS
- IP TOS/DSCP/IP precedence
- IP TCP/UDP port number
- Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
Traffic-policing on the switch port
DSCP remarking

Supports IGMP snooping v1, v2 and v3
Supports MLD snooping v1 and v2
Querier mode support
IGMP snooping port filtering
MLD snooping port filtering
MVR (Multicast VLAN Registration)

IEEE 802.1x Port-based/MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers
TACACS+ login users access authentication
RADIUS/TACACS+ users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Source MAC/IP address binding
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
IP address access management to prevent unauthorized intruder

Switch Management Interfaces
- Telnet Command Line Interface
- Web switch management
- SNMP v1 and v2c switch management
- SSH/SSL and SNMP v3 secure access
- 2.4-inch color LCD touch screen
Four RMON groups (history, statistics, alarms, and events)
IPv6 IP address/NTP/DNS management
Built-in Trivial File Transfer Protocol (TFTP) client
BOOTP and DHCP for IP address assignment
Firmware upload/download via HTTP/TFTP
DHCP Relay and DHCP Option 82
User Privilege levels control
Network Time Protocol (NTP)
Link Layer Discovery Protocol (LLDP)
SFP-DDM (Digital Diagnostic Monitor)
Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
Reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility for deployment management

Teknisk info


Tillverkare Planet
