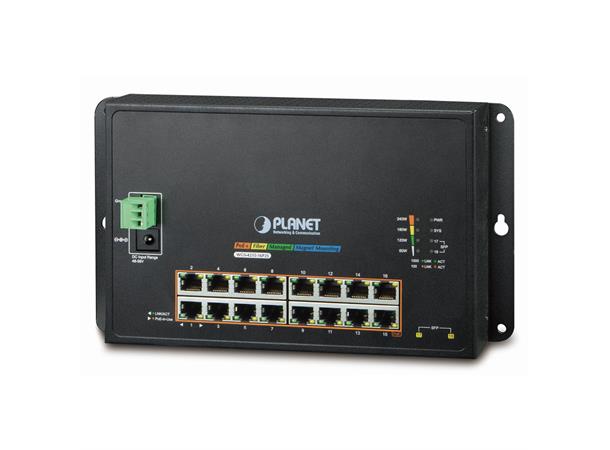

Industriell Switch 16-Port 1000T POE

+ SFP 2-Port 100/1000X Wall-mount

Artikelnummer: WGS-4215-16P2S
BeskrivningTeknisk infoSupport
Beskrivning
Physical Port
16-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function
2 100/1000BASE-X mini-GBIC/SFP slots

Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
Backward compatible with IEEE 802.3af Power over Ethernet
Up to 16 ports of IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100 meters

PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
- PD alive check
- PoE schedule

Industrial Case and Installation

Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design
IP40 metal case protection
Supports -10 to 60 degrees C operating temperature
Supports ESD 6KV DC Ethernet protection
Dual power input design
- 48V~56V DC wide power input with polarity reverse protect function
- 3-pin terminal block or DC jack connector

Switching
Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
8K MAC address table size
10K jumbo frame
Automatic address learning and address aging
Supports CSMA/CD protocol

Layer 2 Features
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
- Protocol VLAN
- Voice VLAN
- Private VLAN (Protected port)
- Management VLAN
- GVRP
Supports Spanning Tree Protocol
- STP (Spanning Tree Protocol)
- RSTP (Rapid Spanning Tree Protocol)
- MSTP (Multiple Spanning Tree Protocol)
- STP BPDU Guard, BPDU Filtering and BPDU Forwarding
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (static trunk)
Provides port mirror (many-to-1)
Loop protection to avoid broadcast loops

Quality of Service
Ingress/Egress Rate Limit per port bandwidth control
Traffic classification
- IEEE 802.1p CoS
- TOS/DSCP/IP precedence of IPv4/IPv6 packets
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast
Supports IPv4 IGMP snooping v2, v3
Supports IPv6 MLD snooping v1, v2
IGMP querier mode support
IGMP snooping port filtering
MLD snooping port filtering

Security
Storm Control support
- Broadcast/Unknown unicast/Unknown multicast
Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ authentication
Access Control List
- IPv4/IPv6 IP-based ACL
- IPv4/IPv6 IP-based ACE
- MAC-based ACL
- MAC-based ACE
MAC Security
- Static MAC
- MAC filtering
Port security for source MAC address entries filtering
DHCP snooping to filter distrusted DHCP messages
Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
IP source guard prevents IP spoofing attacks
DoS attack prevention
SSH/SSL

Management
IPv4 and IPv6 dual stack management
Switch Management Interface
- IPv4/IPv6 Web switch management
- Telnet Command Line Interface
- SNMP v1, v2c, v3
- SSH and SSL secure access
User privilege levels control
Built-in Trivial File Transfer Protocol (TFTP) client
Static and DHCP for IP address assignment
System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
SNTP Network Time Protocol
Cable diagnostics
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
SNMP trap for interface Link-up and Link-down notification
Event message logging to remote Syslog server
Four RMON groups (history, statistics, alarms and events)
PLANET Smart Discovery Utility
Teknisk info

Produktinformation

Tillverkare Planet
