Utgår ur sortimentet och ersätts av V12 - 20230504
********************************************

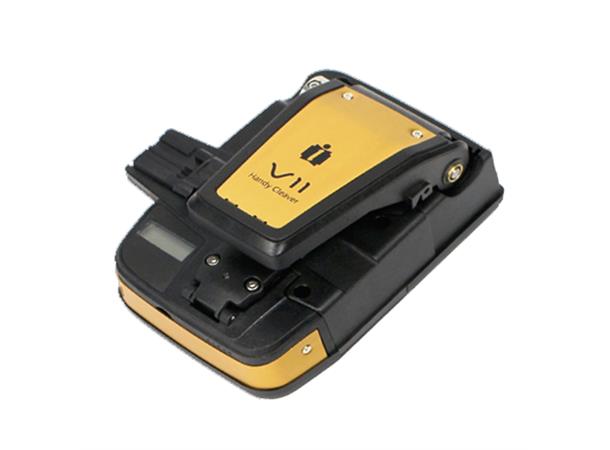

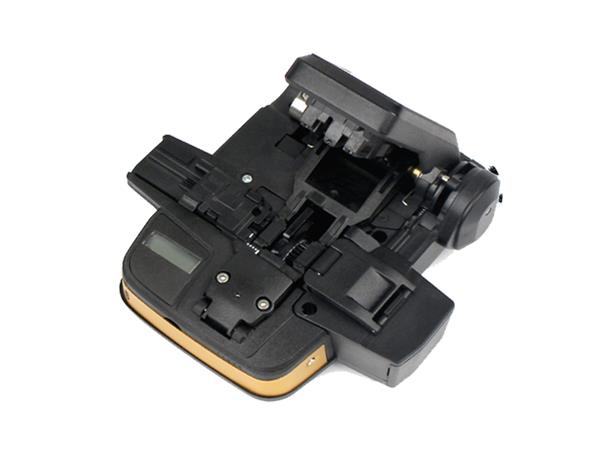

V11 , HIGH PRECISION CLEAVER CLEAVING WITH UNIVERSAL HOLDER AND REPLACEBALE HOLDER
·One-step Operation
·Auto Rotation 30 Channels
·Cleaving Counter
·Auto Trashbin



V11 High Precision Cleaver is an instrument for high precision fiber cutting. V11 High Precision Cleaver is installed with universal holder, which is applicable to 250µm fiber cable, 900µm fiber cable, flat cable, Ribbon fiber jumper cable. It is widely used for fiber cutting and especially more focusing on FTTx field. It also has an automatic collector for fiber shards and off cuts. The blade provides over 60,000 cleaves by easy and simple blade position selection.



Type: Single fiber and Ribbon fiber
Cladding Diameter: 125µm
Cleaved Length:  Single Fiber : 5mm ~ 24mm (Coating diameter = 250µm) , 10mm ~ 20mm (Coating diameter >250µm) Ribbon (Multi) Fiber : 10mm
Applicable Fiber Cable: Single Fiber : 160µm to 900µm, 2mm ~ 3mm and drop cable Ribbon (Multi) Fiber : 2 ~ 16 ribbon fibers
Typical Cleaved Angle: Single Fiber : 0.3 ° ~ 0.8 ° Ribbon (Multi) Fiber : 0.3 ° ~ 1.0 °
Typical Blade Life: Total 60,000 fiber cleaves (2,000 cleaving per each point, total 30 points)
Holder: Universal holder, Replaceable holder
Weight: 245g
Dimension: 105L x 109W x 52H mm (with Auto Trashbin)
