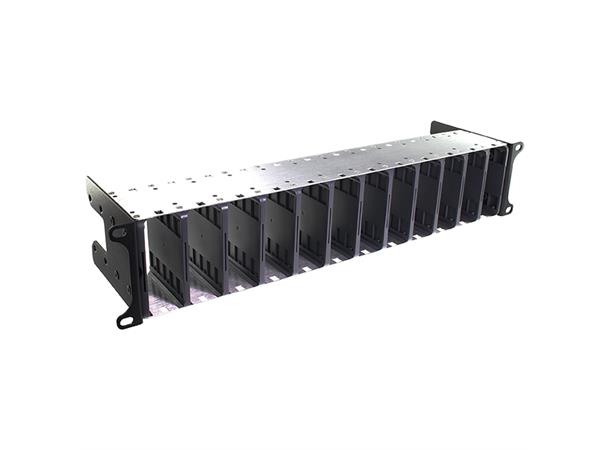

ECS 12-slots panel för MTPK Kassett 2HE 19" MPO UHD

ECS 12-slots panel för MTPK Kassett 2HE


Artikelnummer: MTPP-PAN-02/E

ECS 2U MTP Ultra High Density Chassis is the part of the system for high density fibre optics infrastructure management in Data Centers,Telecommunication and Enterprise network environment. 2U chassis can house up to 12 x MTPK Cassetts Modules- design allows to scale up to 288x LC ports and 2304 fibres using MPO/ MTP Interface.

- Ultra High Density
- Up to 288 LC ports in 2U
- Up to 2304 fibres using MPO/MTP Interface
- Compact size for installation inside shallow depth racks
- Open chassis free access module installation
- Secure easy access lock/release mechanism
- Front and rear module access
- Facilitated patch cord installation

Height: 889mm 2U
Width: 484mm 19"
Depth: 125mm
Maximum Number of MTPK Cassettes: 12
Operating Temperature: -40°C to +60°C

Designed in accordance with TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1
Compliant to RoHS, SVHC
