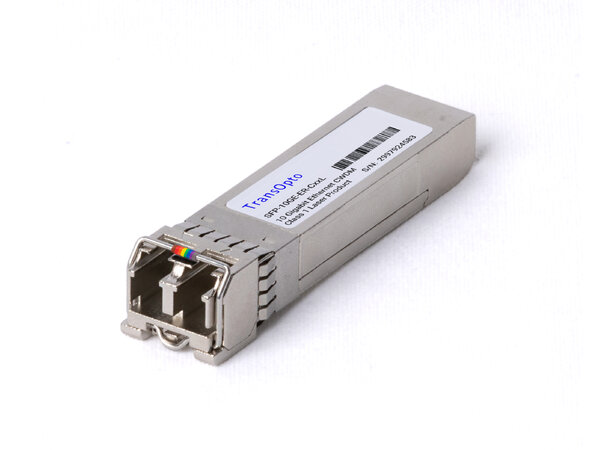

SFP+, 10GBase-LR, DDM, 40km CWDM 1471nm-1611nm, 15dB, SM

SFP+, 10GBase-LR, DDM, 40km

CWDM 1471nm-1611nm, 15dB, SM

BeskrivningTeknisk infoSupport
Beskrivning

Key Features
Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
CWDM DFB laser and PIN photodiode, Up to 40km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature: 0 to +70°C
Transmitter Type: CWDM EML
Receiver Type: PIN
TX Power:-1.0~+5.0dBm
Receiver Sensitivity:< -16.0dBm
Powerbudget: 15dB

Application
10Gbps CWDM Optical systems
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
LTE systems
Other Optical links

Teknisk info

Produktinformation

Avstånd 25-50 km
DDM Ja
Formfaktor SFP+
Kontakt LC Duplex
Mediatyp Singelmod
