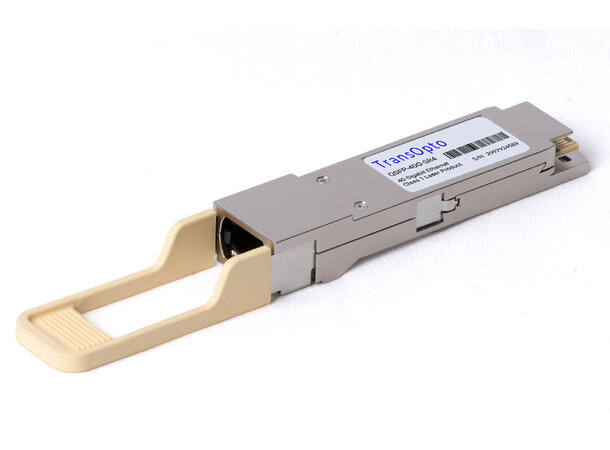

QSFP+, 40GbE-SR4, 4 x 10.3 Gbps, 150m 850nm, 2dB, MM, MPO-12

QSFP+, 40GbE-SR4, 4 x 10.3 Gbps, 150m

850nm, 2dB, MM, MPO-12

Artikelnummer: QSFP-SR4-40G
BeskrivningTeknisk infoDokumentation
Beskrivning

Key Features
4 independent full-duplex channels
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
MTP/MPO optical connector
QSFP MSA compliant
Digital diagnostic capabilities
Capable of over 100m transmission on OM3 Multi-mode Fiber (MMF) and 150m on OM4 MMF
CML compatible electrical I/O
Single +3.3V power supply operating
TX input and RX output CDR retiming
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Power Consumption: <1.5W
TX Power: -7.1~1.9dBm
Receiver Sensitivity: <-10.3dBm
Powerbudget: 3.5dB


Application
Rack to rack
Data centers
Metro networks
Switches and Routers
Infiniband 4x SDR, DDR, QDR

Teknisk info

Produktinformation

Avstånd < 1 km
DDM Ja
Formfaktor QSFP+
Kontakt MPO
Mediatyp MPO Multimod


Dokumentation
