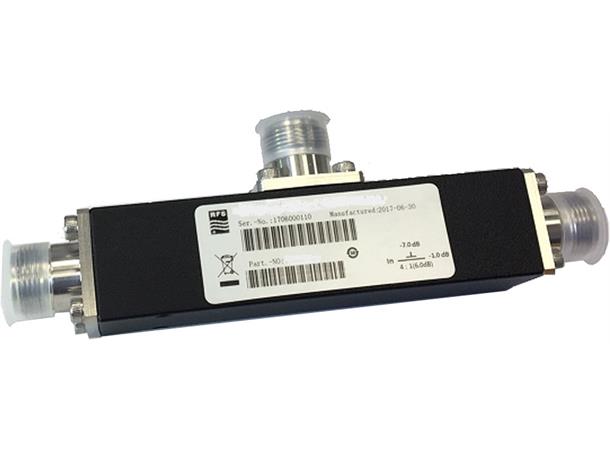

RFS TPS* Tapper product family has been designed to support a variety of wireless applications in the frequency band from 694 to 3800MHz. The units couple off a defined fraction of a RF signal from typically 3 to 30 dB with minimal reflections or loss. The broad frequency range is ideally suited for 3G / 4G / 5G multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables. Notably, these products feature a low level of network interferences due to their PIM optimized desing.
FEATURES / BENEFITS

Split ratio 3:1 / 5dB
4.3-10-female interfaces
PIM optimized design (160dBc @2x43dBm)
Low insertion loss
High power handling
Small size, Low weight
