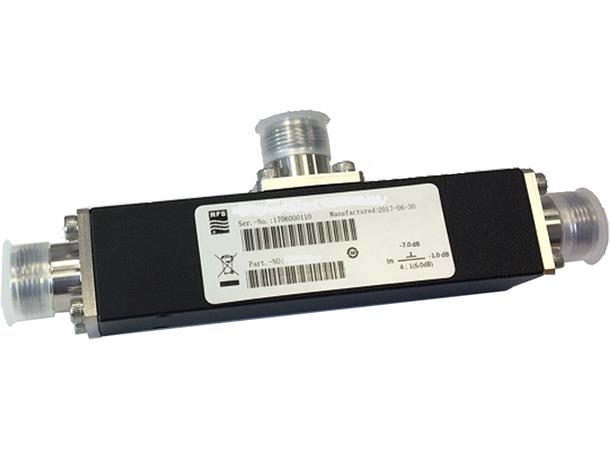

TPS10-43-694/3800
Unequal Divider/Tapper
RFS TPS* Tapper product family has been designed to support a variety of wireless applications
in the frequency band from 694 to 3800MHz. The units couple off a defined fraction of a RF
signal from typically 3 to 30 dB with minimal reflections or loss. The broad frequency range is
ideally suited for 3G / 4G / 5G multi-band distributed antenna systems or in combination with
RADIAFLEX® radiating cables. Notably, these products feature a low level of network
interferences due to their PIM optimized desing.
FEATURES / BENEFITS
- Split ratio 10:1 / 10dB
- 4.3-10-female interfaces
- PIM optimized design (160dBc @2x43dBm)
- Low insertion loss
- High power handling
- Small size, Low weight
