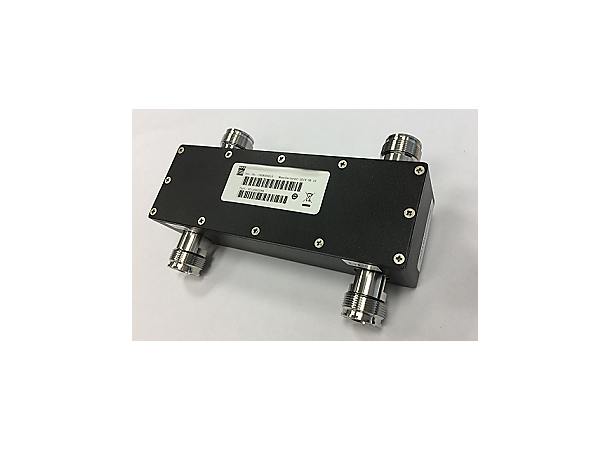

The CDS2x2-43-694/3800 hybrid coupler is four-port directional coupler which equally combines two wireless signals and transfers the combined signal to two output ports. The product is designed for wireless services and applications in the frequency band from 694-3800MHz including 2G/3G/4G. The broad frequency range and outstanding PIM rating is ideally suited for multi-band distributed antenna systems or in combination with RADIAFLEX® radiating cables.

FEATURES / BENEFITS

4.3-10-female interfaces
PIM optimized design (160dBc @ 2x43dBm)
Ideal for all kind of DAS applications
Low insertion loss
High power handling
