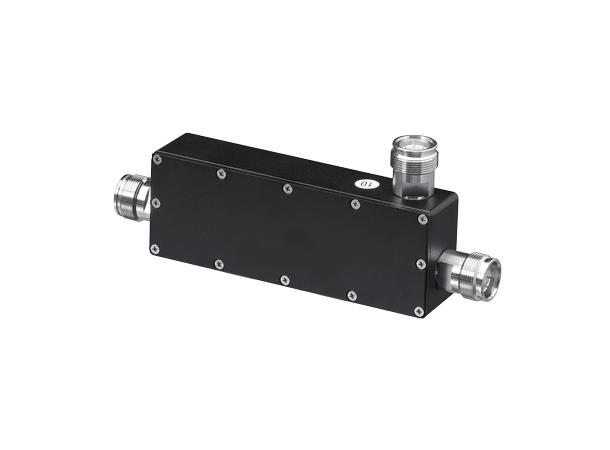

CDS15-43-555/6000
Broadband Directional Coupler for Wireless & Indoor Application, 555-6000MHz, 15dB Coupling Loss
PRODUCT DESCRIPTION
RFS' CDS*-43 series of Directional Couplers have been designed for a variety of wireless
applications in the frequency band from 555 to 6000MHz. The units couple off a defined
fraction of a RF signal from 5 to 30 dB (depending on the model number) with minimal
reflections or loss. The broad frequency range is ideally suited for multi-band
distributed antenna systems or in combination with RADIAFLEX® radiating cables.
FEATURES / BENEFITS
- Broadband 555MHz-6000MHz
- 4.3-10 Female Interface
- PIM Optimized Design (163dBc @2x43dBm)
- Low Insertion Loss
- High Power Handling
- Small Size, Low Weight
